Which Radio Does Your 2010-2014 Legacy or Outback Have? Pick It Below
The 2010-2014 Legacy and Outback came with FOUR different factory radio setups, and the wiring is different for each. Trim names will not tell you which one you have - but the radio's face will. Click the picture that matches your dash:

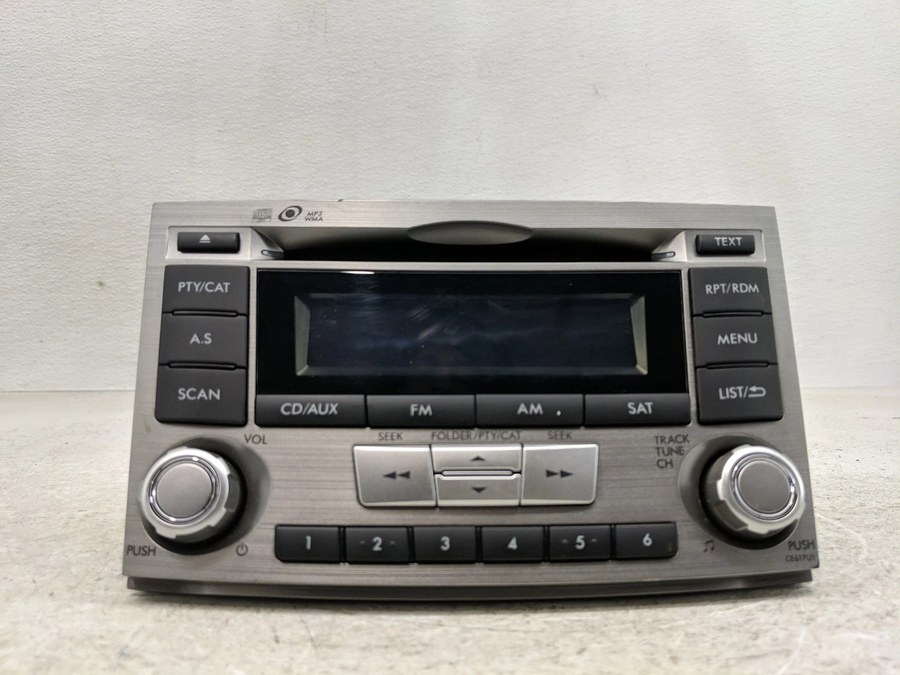

Standard radio - small text display, no screenMost common

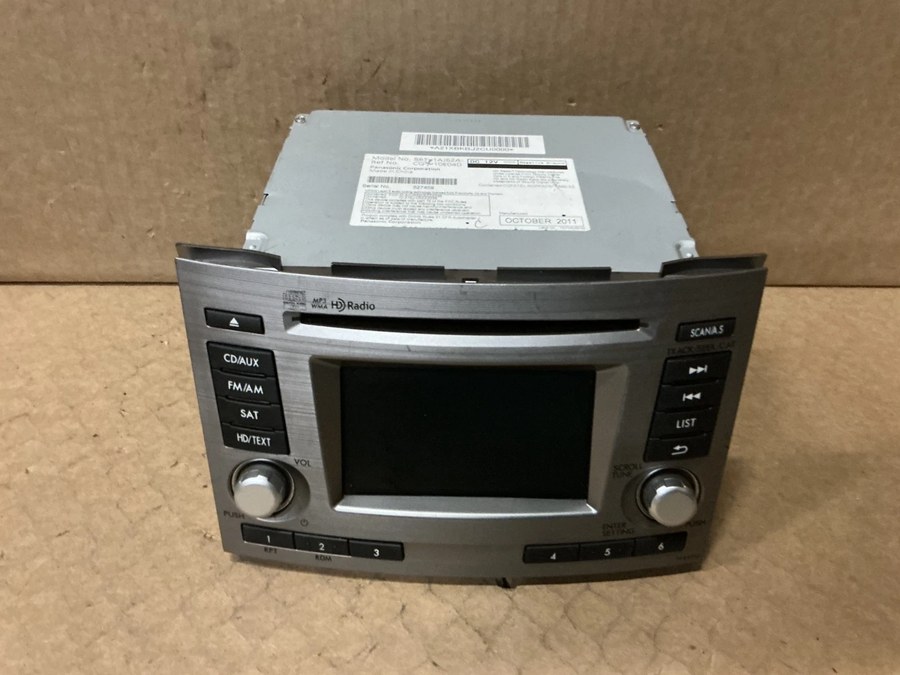

Color display screen - no navigationPremium/amplified

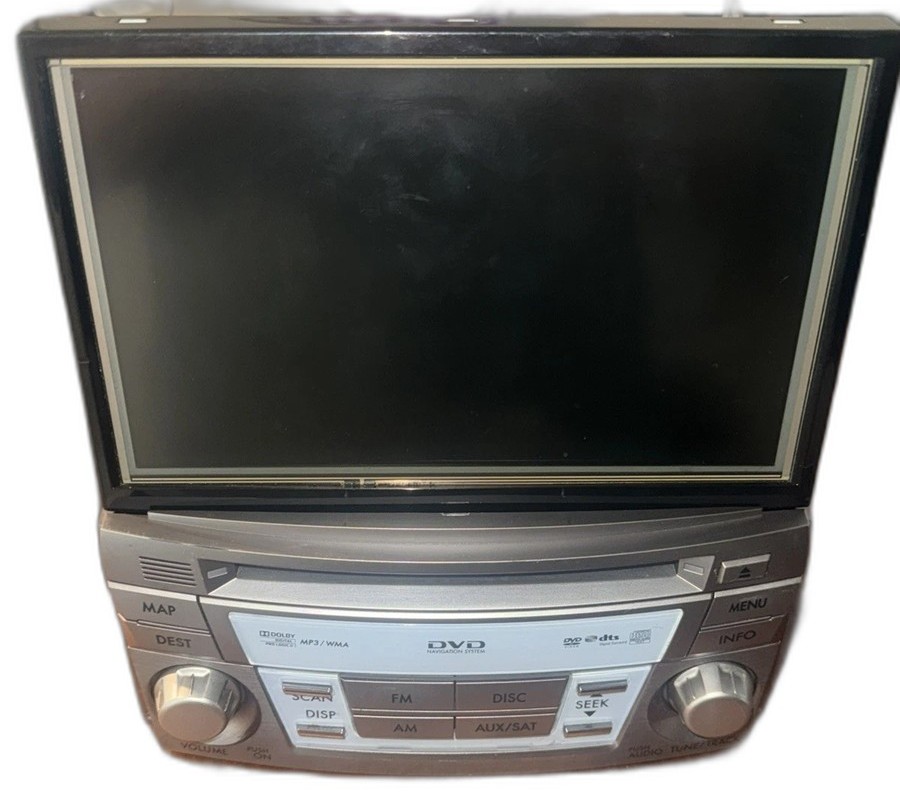

Flip-up screen, DVD Navigation (MAP/DEST buttons)2010-2012 Nav

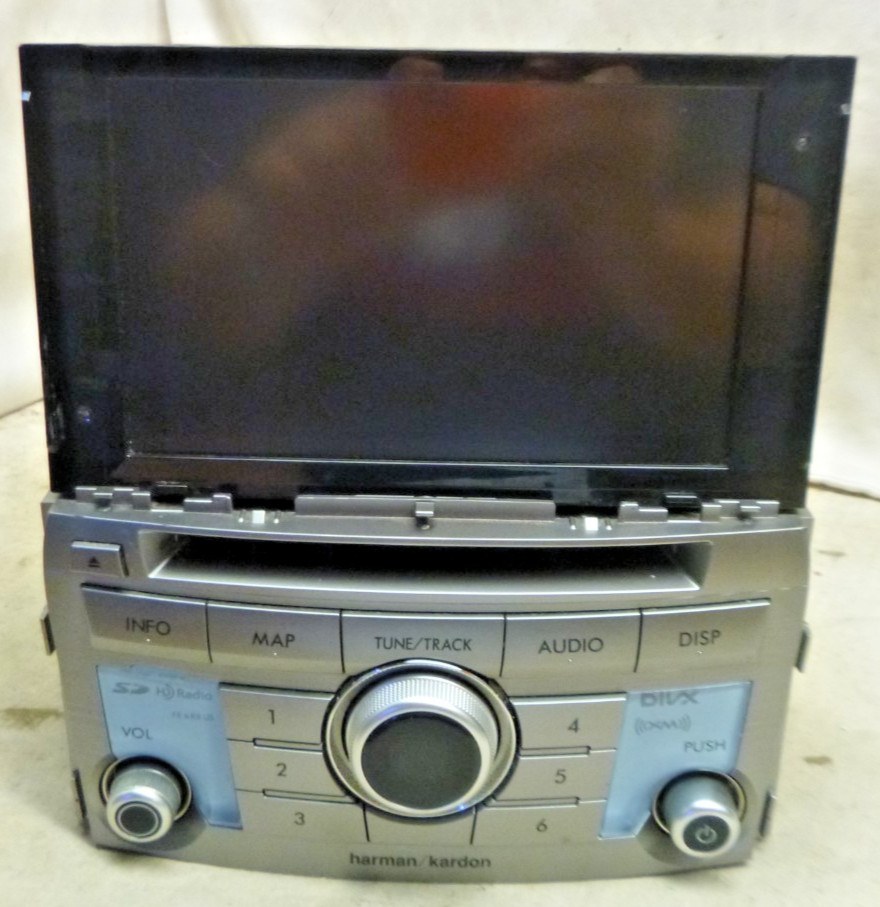

Flip-up screen with harman/kardon label (INFO/MAP buttons)2013-2014 Nav
Standard radio (no display screen) - everything is plug and play
1. Main harness - connects power, ground, speakers, and the steering wheel buttons. Pick the version that matches your NEW headunit:
Pioneer Direct Wire - with or without ASWC-1 connector$21-$28
Sony Direct Wire Harness (AHH-70-7552SO)$24Add to cart
ATOTO A6PF, S8MS & S8 Lite Direct Wire$33
ATOTO S8 & F7 Direct Wire$33
All Other Brands - spliceable 20-pin adapter$17Add to cart 2. Keep your console AUX input - pick RCA or 3.5mm to match your headunit:
3. Keep your console USB port:
4. AM/FM antenna adapter - these cars use a larger antenna plug than other Subarus, so you need this specific adapter:
Have a backup camera? On these radios it displays on the rear-view mirror and keeps working as-is - no adapter needed. Full details on the 20-pin install page.
Color display screen, no navigation - the premium/amplified setup
Your car has a factory amplifier (the radio face will NOT say Harman Kardon, but the amp is there). The install uses the 10-pin/6-pin adapter set with the amplifier switched through pin 3 of the 28-pin connector - we recommend RCA connections to feed the amp, and we build the amplifier harness set per order. Email us your model, year, and new headunit for the complete quote (more detail on the amplified Legacy/Outback page).
You can order these standard pieces now - they are part of the kit either way:
DVD Navigation flip screen (2010-2012) - the custom one
These use a 20-pin main connector plus a 24-pin amplifier connector, a separate backup camera connector, and another connector for the reverse signal. The full harness set is a custom build we make regularly - email us your model, year, and new headunit for the complete quote.
You can order the antenna adapter now - these cars use the extended 18-inch adapter:
harman/kardon Navigation flip screen (2013-2014) - the standard nav kit
1. Backup camera / steering wheel control adapter - replaces the 28-pin and 16-pin connections and provides the backup camera video, steering wheel signals, and reverse signal to your new headunit:
2. Main harness - pick the version that matches your NEW headunit (all other brands use the Metra 70-1761, sold on the navigation page):
Pioneer Direct Wire Harness (AHH-70-1761)$17Add to cart
Sony Direct Wire Harness (AHH-70-1761SO)$20Add to cart
ATOTO A6PF, S8MS & S8 Lite - AM/FM adapter included$29
ATOTO S8 & F7 - AM/FM adapter included$29 3. USB and AM/FM adapters (Toyota-style on these models; skip the AM/FM if you chose an ATOTO harness - it is included):
4. The factory amplifier switches on through pin 9 of the 10-pin connector - we recommend RCA connections to feed it. Email us and we will include the right hookup with your order.
Covers all 2010-2014 Subaru Legacy and Outback trims. 2014 radios look like the 2013 units. Still not sure? Email us a photo of your dash and we will identify it for you.
Vehicle Compatibility
The parts on this page fit these Subaru models - all trims and audio packages:
- 2010-2014 Subaru Legacy
- 2010-2014 Subaru Outback
Not sure which category your vehicle falls into? Use the selector at the top of this page, check our Vehicle Wiring & Compatibility Database, or email us (inquiry@autoharnesshouse.com).
