Fits2014-2019 Toyota Tundra with Entune 2.0 (Toyota added CarPlay to the Tundra for 2020)
Best radioA factory 2020-2021 Tundra Entune 3.0 head unit. It bolts into the same mounts (part numbers)
PopularMore than 40 Tundra owners ordered this harness in the past year
KeepsSteering wheel buttons, backup camera, Bluetooth mic, SiriusXM and speakers
JBL audio?1794 Edition, Platinum and other JBL trucks need the JBL kit and the 2020-2021 JBL amp (details)

What to order

Main harness
Main harness $125
Everyone needs this (non-JBL cars)
USB adapter
USB adapter $40

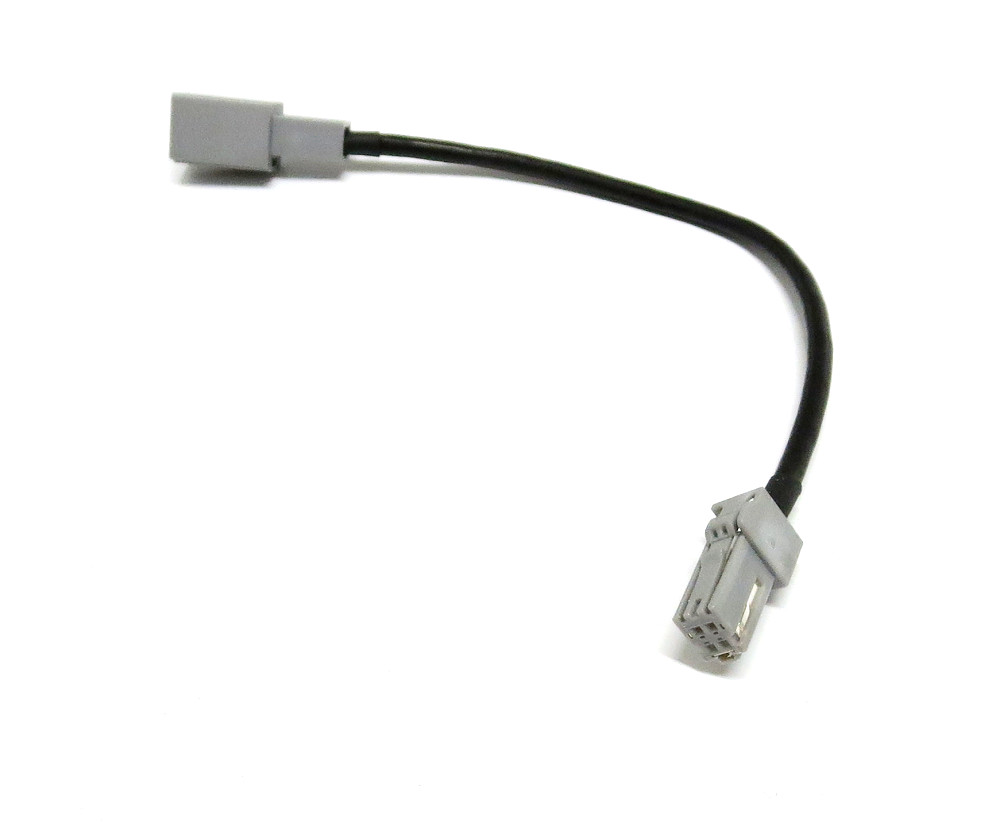

Keeps your console USB port for CarPlay / Android Auto. Most customers add it.
Navigation adapter
Navigation adapter $65
Only if your new unit has a separate navigation box (see photo below)
JBL kit
JBL kit $280
Cars with JBL audio: order this instead of the main harness
Entune 2.0 unit next to an Entune 3.0 unit with the navigation module underneath
Navigation module (yellow box) bolted under the Entune 3.0 unit: if your new unit has one, add the navigation adapter.

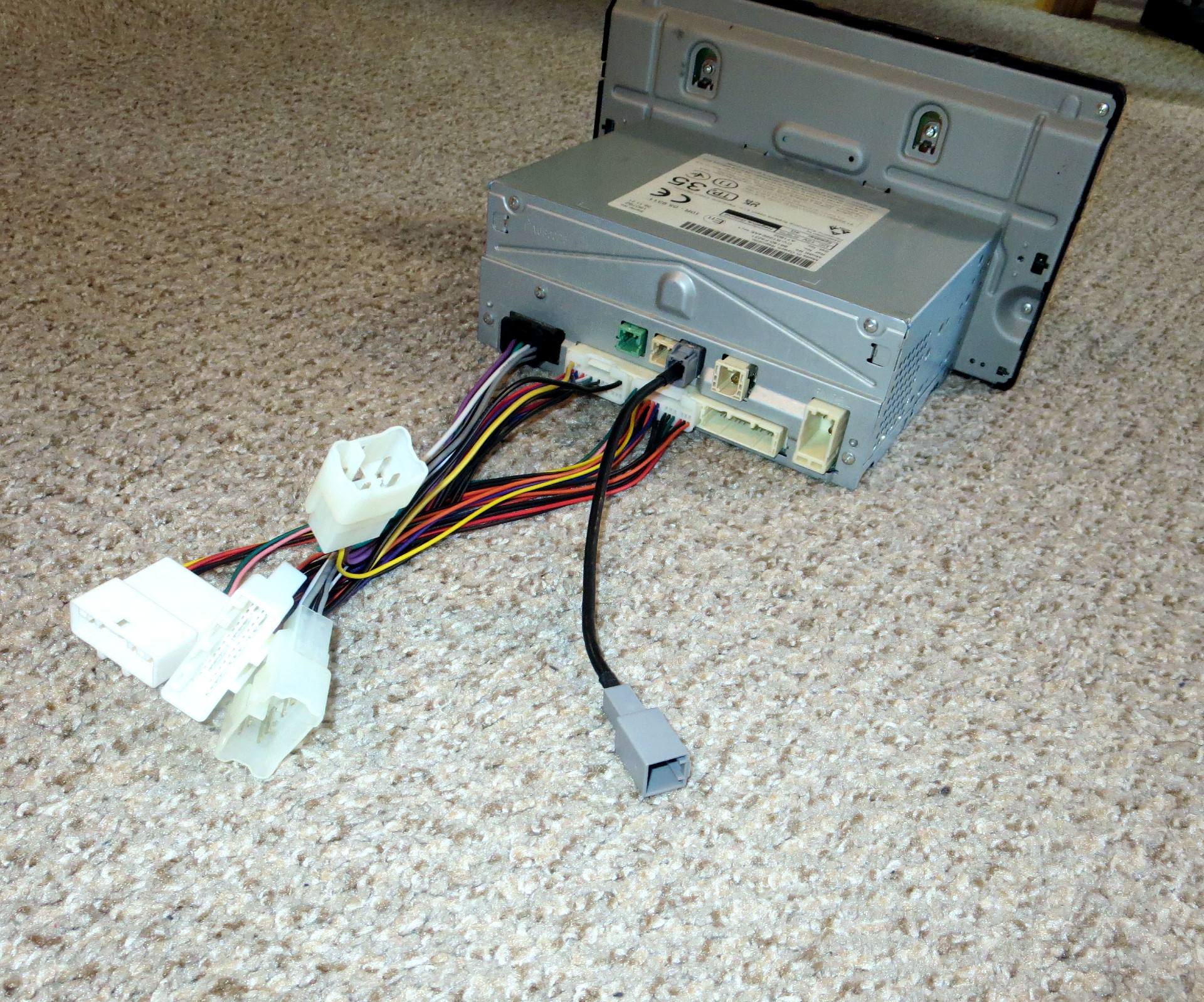

Back of an Entune 3.0 unit: the connector only used with navigation units
The extra connector on the navigation module is only used with navigation units.

Entune 3.0 add Carplay amp

Add a Toyota Navigation Double Din unit to Tacoma or 4Runner Entune 3.0 headunit rear connector and adapter picture Wiring to Transplant 2019+ Toyota radio into an older vehicle

Watch a Tundra owner install a factory Entune 3.0 head unit with our harness:

The install at a glance

1. Pry off the dash trim
1. Pry off the dash trim
2. Unbolt and pull out the old Entune 2.0 radio
2. Unbolt and pull out the old Entune 2.0 radio

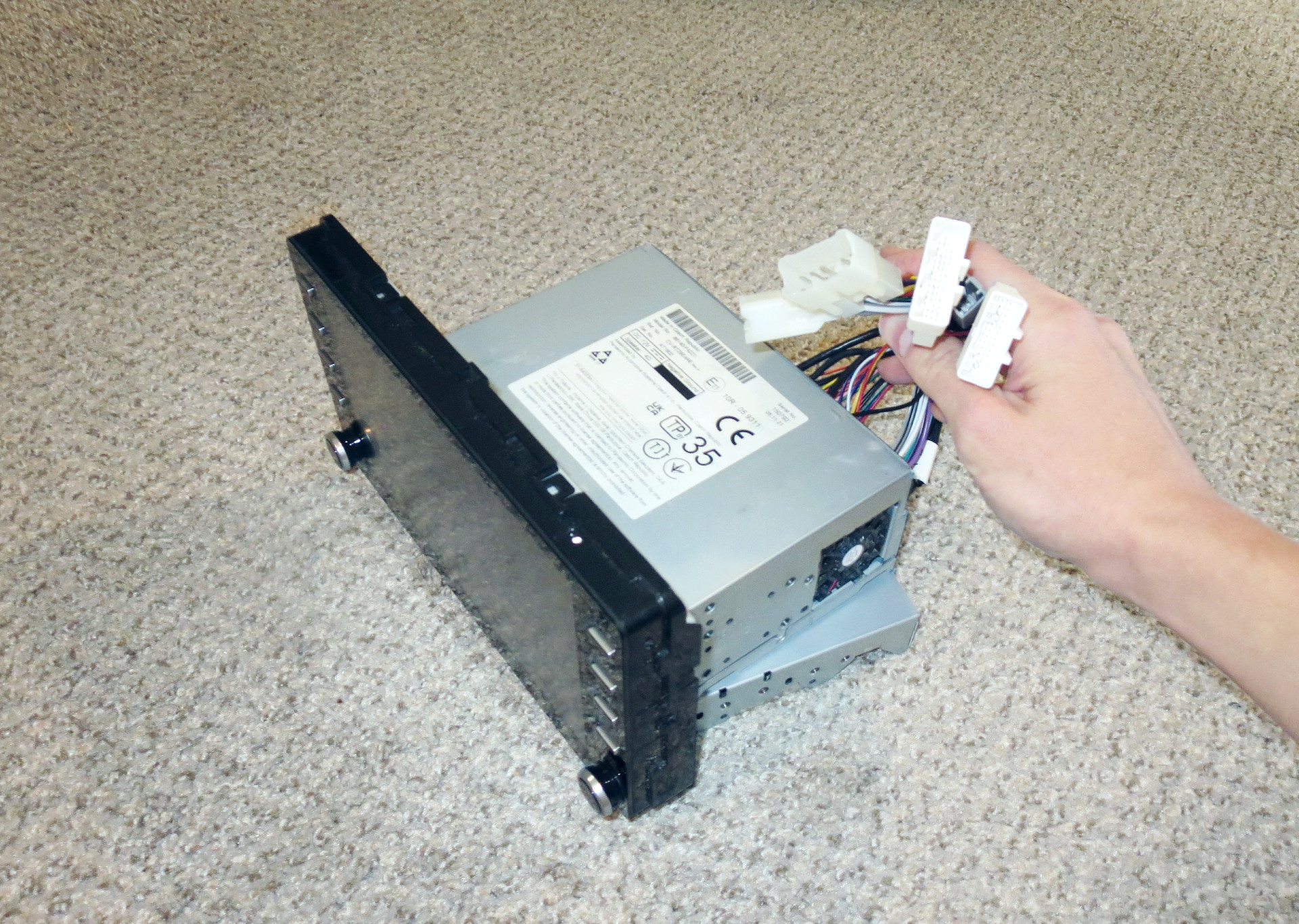

3. Plug our harness into the car and the new unit
3. Plug our harness into the car and the new unit
4. Slide the Entune 3.0 unit in and refit the trim
4. Slide the Entune 3.0 unit in and refit the trim

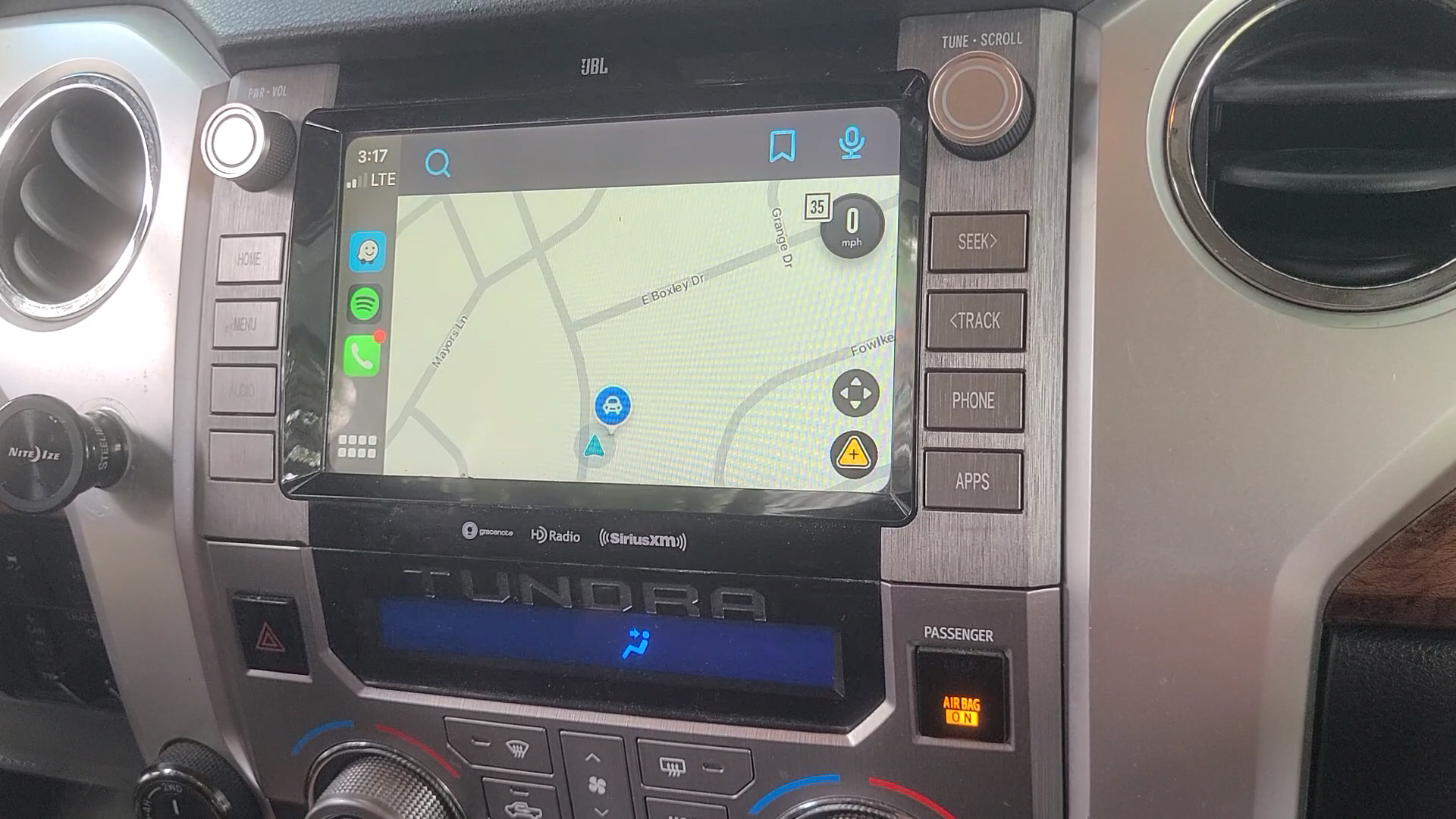

5. Done: CarPlay and Android Auto
5. Done: CarPlay and Android Auto

Photos from our Tacoma install video. The wiring steps are the same in every model; your dash trim may come apart differently.

Description:

This harness lets you replace the Entune 2.0 radio in a 2014-2019 Toyota Tundra with the factory Entune 3.0 head unit from a 2020-2021 Tundra, the first Tundra years with Apple CarPlay and Android Auto. It plugs into your truck's factory radio connectors on one side and the Entune 3.0 unit on the other, so there is no cutting or splicing. Every harness is built to order for your truck, so tell us your year, whether you have JBL audio, and whether the new unit has a navigation box when you order.

Which Tundras this radio upgrade fits

  • 2014-2019 Tundra (Entune 2.0): the harness is made for these trucks, including 2019. Our Tundra customers have 2014, 2015, 2016, 2017, 2018 and 2019 trucks.
  • 2020-2021 Tundra: these trucks came with Entune 3.0, Apple CarPlay and Android Auto from the factory. Their radios are the ones you install in an older Tundra.
  • 2022 and newer Tundra: the new-generation radios have a different USB and GPS connection and are not supported.
  • 2010-2013 Tundra: almost any Entune 3.0 unit needs modification to physically fit the earlier dash. Contact us before you buy a radio.

The best head unit for a Tundra: a 2020-2021 Tundra Entune 3.0 radio

A head unit from a 2020 or 2021 Tundra uses the same mounting locations as your current radio, so the bolts go back into the same slots and the dash goes back together without trimming. It also keeps the Tundra look: the two-tone faceplate (silver outer edge, black center) is only found on Tundra radios.

Radios from a Tacoma or other Toyota models work electrically with this harness, but they are a different shape. On the Tundra the bezel is part of the radio rather than a separate dash piece, so another model's radio needs an aftermarket dash kit. See the Tundra dash kit options.

Navigation units

  • A navigation Entune 3.0 unit has a separate navigation box bolted under the radio. If yours has one, add the $65 navigation adapter. The navigation adapter is still needed even if you will not use navigation, because the GPS antenna plugs into the navigation box.
  • Every Entune 3.0 unit has a MAP button, even without navigation. Check for the box under the radio. It does not matter whether your current Entune 2.0 radio has navigation.
  • The navigation box connects to the radio with a coax cable, Toyota part 86842-06010. It is not included in our kit and salvage yards often leave it behind. A Toyota dealer sells it for about $60. Without it you can lose GPS, the clock and Android Auto.
  • A navigation unit may restart 2 or 3 times the first time you power it up. That is normal.

JBL Tundras (1794 Edition, Platinum and other JBL trucks)

JBL trucks have a JBL logo below the radio screen and on the door speaker grilles. To keep the JBL system you need a JBL Entune 3.0 unit, our JBL kit, and the 2020-2021 Tundra JBL amplifier, Toyota part 86280-0C230, which replaces the amp under the front passenger seat. The older amp cannot be controlled by an Entune 3.0 unit. Check the part number carefully when you buy a used amp: 86280-0C170, 86280-0C181 and 86280-0C190 are often listed for this swap and do not work, and the 2022+ amp (86280-0C240) has different connectors.

A non-JBL radio in a JBL truck powers up but has no sound, and a JBL radio in a non-JBL truck will not work without the JBL amp. If you already own the wrong combination, contact us about the AXXESS interface option.

Install tips from Tundra owners

  • Radio will not turn on? The two matching 28-pin plugs are swapped. The plug with more wires goes on the inside of the row, next to the black connector. Swapping them does not damage anything.
  • The hardest step is getting the old radio out. After that, everything plugs in and bolts back together.
  • No clock or CarPlay will not connect? Check the GPS antenna (almost all Tundras already have one; it plugs into the back of the radio with a white half-circle connector) and, on navigation units, the coax cable above.
  • SiriusXM: your existing antenna works, but the new radio has a different radio ID, so call SiriusXM to move your subscription.
  • Random restarts with a used radio have come from a worn volume/power knob on the donor unit, not from the harness.
  • Wireless CarPlay: these Entune 3.0 units are wired-only, but a wireless CarPlay adapter in the console USB port works.

Toyota part numbers for the Tundra Entune 3.0 swap

Toyota part numberWhat it isNotes
86140-0C3502020-2021 Tundra Entune 3.0 head unit, non-navigationThe most common unit we see. Standard harness
86140-0C3302020-2021 Tundra Entune 3.0 head unit, non-navigationStandard harness
86140-0C320Tundra Entune 3.0 head unit, non-navigationStandard harness
86140-0C3902020-2021 Tundra Entune 3.0 head unit with navigation boxAdd the navigation adapter
86140-0C4202020-2021 Tundra JBL Entune 3.0 head unit (navigation)JBL trucks only: JBL kit + amp 86280-0C230
86140-0C4212021 Tundra JBL Entune 3.0 head unit (navigation)JBL trucks only
86140-0C4302020 Tundra JBL Entune 3.0 head unitJBL trucks only
86140-0C340Canadian Tundra Entune 3.0 head unit, non-navigationSame wiring; displays may be metric
86140-0C380Canadian Tundra Entune 3.0 head unit with navigationSame wiring; add the navigation adapter
86280-0C2302020-2021 Tundra JBL amplifierRequired for the JBL swap
86842-06010Coax cable, Entune 3.0 radio to navigation boxNot included; about $60 from a Toyota dealer
86280-0C170 / 0C181 / 0C190Earlier Tundra amplifiersDo not work with an Entune 3.0 JBL radio
86100-0C391 / 86280-0C2402022+ Tundra radio and JBL ampNot supported

Part numbers are taken from units our customers have installed or that we have confirmed. Toyota sometimes adds a suffix or a revised number. If you are looking at a unit that is not listed, email us the part number before you buy.

Good to know before you order

  • Retained: speakers (and the factory amp on non-JBL vehicles that have one), aux input, steering wheel buttons, Bluetooth microphone and the factory backup camera. The camera plug is built for 2014+ vehicles by default; email us if you need the 16-pin version for 2011-2013.
  • Dash display (MID): street names, compass and song info show in the instrument cluster only with a navigation Entune 3.0 unit. Non-navigation units do not send this information.
  • JBL audio: needs a JBL Entune 3.0 unit plus the JBL amplifier from a newer vehicle, and our JBL kit instead of the standard harness.

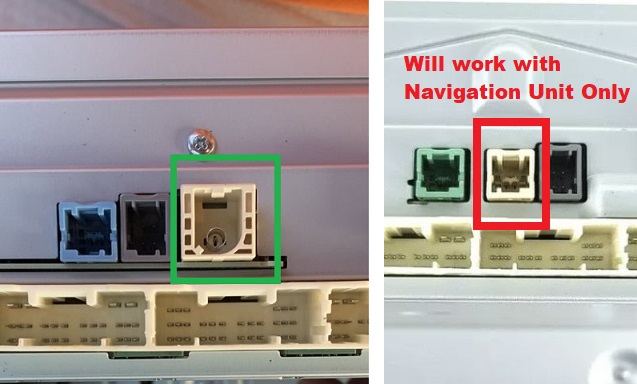

  • GPS antenna: navigation-capable units use a different GPS connector. This only matters if you install a navigation unit without its navigation box. See the connector photo.
  • Lead time: every harness is hand-built to order. Most orders ship within 4 days. Email us if you need it by a certain date.
  • USB: the USB adapter keeps the factory console USB port that is connected to the audio system. Other USB ports in the vehicle that are not wired to the audio system (charge-only ports) are not connected to the new radio.
  • Prices: main harness $125, USB adapter $40, navigation adapter $65 (only for navigation units), JBL kit $280.

Purchase (Non-JBL Vehicles):

⚠ JBL Vehicle Owners: This form is for NON-JBL vehicles only. Click here for the JBL adapter instead →

If you need the USB adapter, please order both parts below

Main wiring adapter:

This form will ask if the new Entune 3.0 headunit has Navigation. Please be aware, it doesn't matter if your current/existing audio system has Navigation. This only matters for the new, Entune 3 unit that you're installing. If the Entune 3.0 unit that you are installing has the extra navigation module that sits under the main radio unit, then you will need the extra add-on wiring adapter sold in this form. For the Model/Year of Vehicle, please only provide the model of the vehicle that you own. The donor vehicle is not important in this case.


2014-2019 Toyota Tundra Radio Upgrade: Add Apple CarPlay and Android Auto with a Factory Entune 3.0 Head Unit

USB Adapter:

The USB adapter is a separate cable that is used to retain the USB port in the center console. This adapter will be needed for using Carplay, Android Auto, or USB charging using the existing USB port that connects to your vehicle's audio system. This adapter plugs in behind the radio and will convert the connection to the proprietary USB connection for the new Entune 3.0 radio unit. Need Wireless Carpaly? A Toyota compatible wireless carplay adapter will work with the new Entune 3.0 unit to add wireless carplay to your vehicle. Here is an example!

Entune 3 USB converter Adapter - Add Carplay

Please contact us if this form does not fit your needs.

Frequently asked questions

What year did the Toyota Tundra get Apple CarPlay?
The 2020 model year. 2014-2019 Tundras have Entune 2.0 without CarPlay or Android Auto. This harness lets you install the 2020-2021 radio in those trucks.

Can I add Apple CarPlay to my 2014-2019 Tundra and keep the factory look?
Yes. Install a factory 2020-2021 Tundra Entune 3.0 head unit with this harness. It bolts into the original mounts and keeps the steering wheel buttons, backup camera, microphone and SiriusXM.

Which Entune 3.0 head unit should I buy for my Tundra?
A 2020-2021 Tundra unit. 86140-0C350 is the most common non-navigation unit, 86140-0C390 has navigation, and 86140-0C420 is the JBL unit for JBL trucks. Units from other Toyota models need a dash kit.

Does the new radio need to be programmed or flashed?
No. The Entune 3.0 unit works as-is with the harness. A navigation unit may restart a few times on first power-up, and SiriusXM must be moved to the new radio ID.

I have JBL audio. What do I need?
A JBL Entune 3.0 unit, the JBL kit, and the 2020-2021 Tundra JBL amp, part 86280-0C230. Your original amp cannot be used with the new radio.

Can I get wireless CarPlay?
The Entune 3.0 units are wired CarPlay and Android Auto. A wireless CarPlay adapter plugged into the console USB port adds wireless.

Related Products:

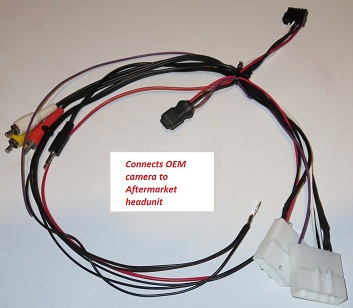

Stock Backup Camera Retrofit Harness (connects Stock Toyota/Subaru/Scion/Lexus backup camera to aftermarket headunit)
