Fits2013-2019 Toyota Tacoma with Entune 2.0. 2016-2019 trucks bolt in; 2013-2015 trucks need a dash kit (see below)
PopularMore than 100 Tacoma owners ordered this harness in the past year
New radioA factory Entune 3.0 head unit from a Tacoma, or a Corolla unit (see below)
KeepsSteering wheel buttons, backup camera, Bluetooth mic, speakers / factory amp
JBL audio?Order the JBL kit instead of the standard harness

What to order

Main harness
Main harness $125
Everyone needs this (non-JBL cars)
USB adapter
USB adapter $40
Keeps your console USB port for CarPlay / Android Auto. Most customers add it.
Navigation adapter
Navigation adapter $65
Only if your new unit has a separate navigation box (see photo below)
JBL kit
JBL kit $280
Cars with JBL audio: order this instead of the main harness
Entune 2.0 unit next to an Entune 3.0 unit with the navigation module underneath
Navigation module (yellow box) bolted under the Entune 3.0 unit: if your new unit has one, add the navigation adapter.
Back of an Entune 3.0 unit: the connector only used with navigation units
The extra connector on the navigation module is only used with navigation units.

Entune 3.0 add Carplay amp

Add a Toyota Navigation Double Din unit to Tacoma or 4Runner Entune 3.0 headunit rear connector and adapter picture Wiring to Transplant 2019+ Toyota radio into an older vehicle

Wanna see how this adapter is installed? Check out this video on our YouTube channel:

The install at a glance

1. Pry off the dash trim
1. Pry off the dash trim
2. Unbolt and pull out the old Entune 2.0 radio
2. Unbolt and pull out the old Entune 2.0 radio
3. Plug our harness into the car and the new unit
3. Plug our harness into the car and the new unit
4. Slide the Entune 3.0 unit in and refit the trim
4. Slide the Entune 3.0 unit in and refit the trim

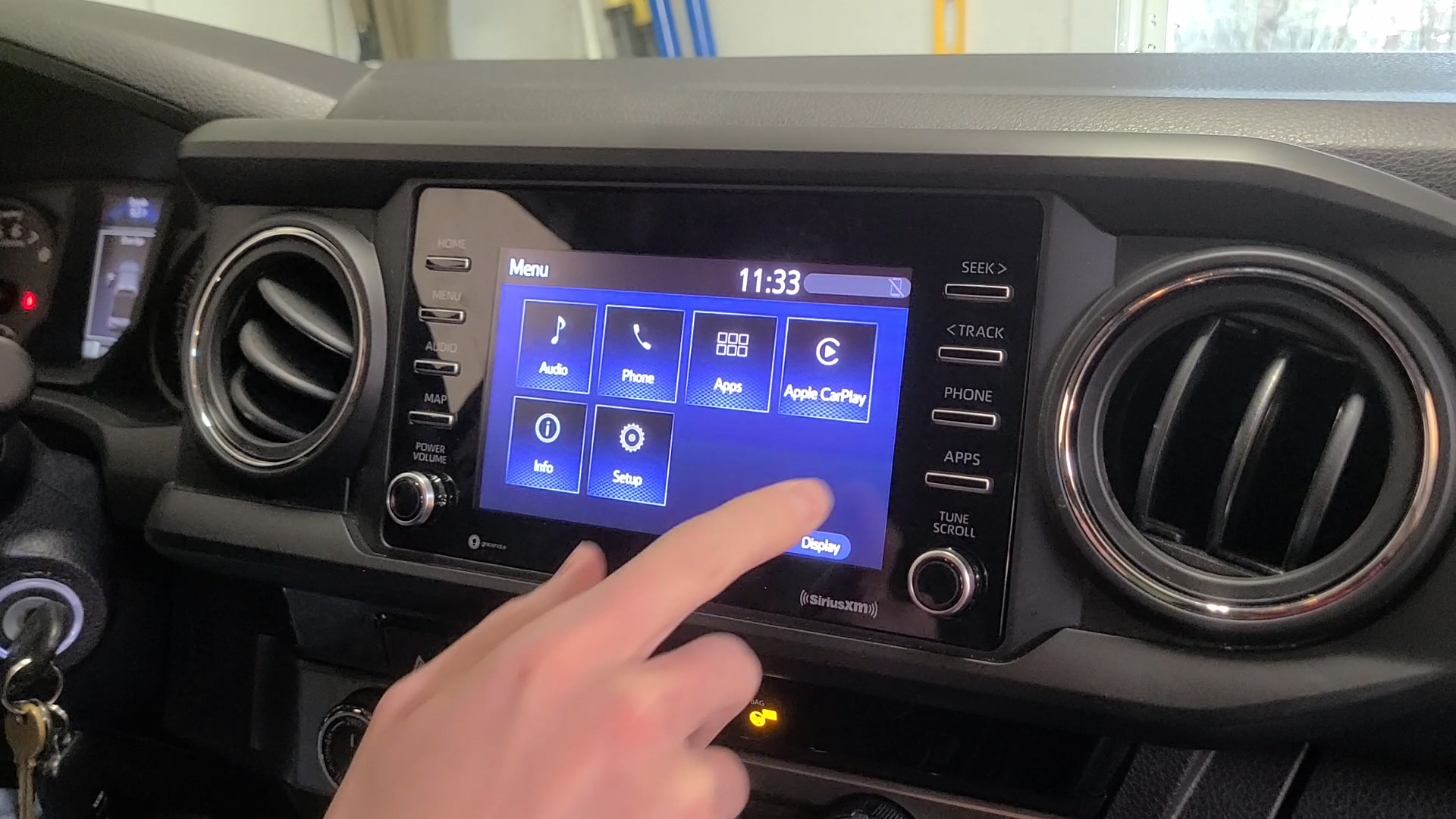

5. Done: CarPlay and Android Auto
5. Done: CarPlay and Android Auto

Photos from our Tacoma install video.

Description:

This adapter harness is tailored for Toyota Tacoma models, connecting directly to the 10-pin, 6-pin, 28-pin, and 24-pin Entune 2.0 connectors within the factory wiring. It is specifically crafted to support the installation of an Entune 3.0 head unit into pre-2019 Toyota Tacomas. Though the harness offers a plug-and-play connection, there can be differences so please complete the necessary information in the purchase form to ensure the adapter is customized to fit your Tacoma perfectly.

Using a Corolla Entune 3.0 unit in a Tacoma

A Corolla Entune 3.0 unit also works with this harness, and Corolla units are often less expensive than Tacoma units. The Corolla unit's metal chassis sits on the lower half of the screen, while the Tacoma unit's chassis sits on the upper half. With a Corolla unit you may need to modify the mounting brackets to fit your Tacoma's dash.

Side view: the Tacoma Entune 3.0 unit's metal chassis sits behind the upper half of the screen, the Corolla unit's chassis behind the lower half

2013-2015 Tacoma: adding Apple CarPlay with an Entune 3.0 unit

The harness works electrically in a 2013-2015 (2nd generation) Tacoma. It plugs into the same factory connectors, and customers have installed 2016+ Entune 3.0 head units in these trucks to get Apple CarPlay and Android Auto. The difference is physical: the newer unit does not drop into the older dash.

  • The factory bezel will not fit the new unit. On a 2012-2015 Tacoma, the trim panel around the radio also holds the clock and hazard switch, and it is shaped for the old radio. The Entune 3.0 unit has a bigger screen.
  • You will need a dash kit. An aftermarket radio trim panel for the 2012-2015 Tacoma, such as the double-DIN Metra 95-8235B (95-8235CHG in charcoal), replaces the factory panel and keeps the clock and hazard switch. These kits are made for a standard double-DIN radio, so expect to trim or modify the kit to fit around the Entune 3.0 unit. Some owners have 3D-printed a custom bezel instead.
  • Mounting brackets: the brackets from your current radio usually work with the new unit.
  • Backup camera: if your truck's camera shows in the rear-view mirror instead of on the radio, we can build a separate camera adapter so the camera shows on the new head unit. Mention this when you order or contact us.

Dash kit options for your truck: 2013 Tacoma parts lookup. If you have a 2016-2019 Tacoma, none of this applies: a 2016+ Tacoma Entune 3.0 unit bolts in with your existing brackets.

Good to know before you order

  • Retained: speakers (and the factory amp on non-JBL vehicles that have one), aux input, steering wheel buttons, Bluetooth microphone and the factory backup camera. The camera plug is built for 2014+ vehicles by default; email us if you need the 16-pin version for 2011-2013.
  • Dash display (MID): street names, compass and song info show in the instrument cluster only with a navigation Entune 3.0 unit. Non-navigation units do not send this information.
  • JBL audio: needs a JBL Entune 3.0 unit plus the JBL amplifier from a newer vehicle, and our JBL kit instead of the standard harness.
  • GPS antenna: navigation-capable units use a different GPS connector. This only matters if you install a navigation unit without its navigation box. See the connector photo.
  • Lead time: every harness is hand-built to order. Most orders ship within 4 days. Email us if you need it by a certain date.
  • USB: the USB adapter keeps the factory console USB port that is connected to the audio system. Other USB ports in the vehicle that are not wired to the audio system (charge-only ports) are not connected to the new radio.
  • Prices: main harness $125, USB adapter $40, navigation adapter $65 (only for navigation units), JBL kit $280.

Purchase (Non-JBL Vehicles):

⚠ JBL Vehicle Owners: This form is for NON-JBL vehicles only. Click here for the JBL adapter instead →

If you need the USB adapter, please order both parts below

Main wiring adapter:

This form will ask if the new Entune 3.0 headunit has Navigation. Please be aware, it doesn't matter if your current/existing audio system has Navigation. This only matters for the new, Entune 3 unit that you're installing. If the Entune 3.0 unit that you are installing has the extra navigation module that sits under the main radio unit, then you will need the extra add-on wiring adapter sold in this form. For the Model/Year of Vehicle, please only provide the model of the vehicle that you own. The donor vehicle is not important in this case.


2013-2019 Toyota Tacoma Entune 2.0 to Entune 3.0 Transplant Harness

USB Adapter:

The USB adapter is a separate cable that is used to retain the USB port in the center console. This adapter will be needed for using Carplay, Android Auto, or USB charging using the existing USB port that connects to your vehicle's audio system. This adapter plugs in behind the radio and will convert the connection to the proprietary USB connection for the new Entune 3.0 radio unit. Need Wireless Carpaly? A Toyota compatible wireless carplay adapter will work with the new Entune 3.0 unit to add wireless carplay to your vehicle. Here is an example!

Entune 3 USB converter Adapter - Add Carplay

Please contact us if this form does not fit your needs.

Frequently asked questions

Will this work in my 2013, 2014 or 2015 Tacoma?
Yes, electrically. The harness plugs into the same factory connectors. Physically, the newer Entune 3.0 unit is larger than the original radio and the factory bezel will not fit around it, so you need an aftermarket dash kit for the 2012-2015 Tacoma (for example the double-DIN Metra 95-8235B), usually with some trimming.

Which head unit fits a 2016-2019 Tacoma without modification?
A factory Entune 3.0 head unit from a 2020 or newer Tacoma. It bolts in with your existing brackets. A Corolla unit also works with the harness but the brackets may need modifying.

Will I keep my backup camera?
On 2016-2019 trucks the camera works on the new unit through the harness. On 2013-2015 trucks where the camera shows in the rear-view mirror, you need our separate camera adapter to show it on the new head unit.

Do I need the USB adapter?
Almost everyone orders it. Apple CarPlay and Android Auto run through USB, and the USB adapter connects the new head unit to the factory USB port in your console.

I have JBL audio. Which harness do I need?
Order the JBL kit instead of the standard harness. The standard harness does not work with the JBL system.
