Item #4438 connects to the OEM wiring. If you are removing the OEM amplifier and replacing it, you'll only need this harness. If you are retaining the OEM amplifier and adding a processor or an additional amp inline, you'll need both #4438 and #4439 (#4439 connects to the OEM amplifier)

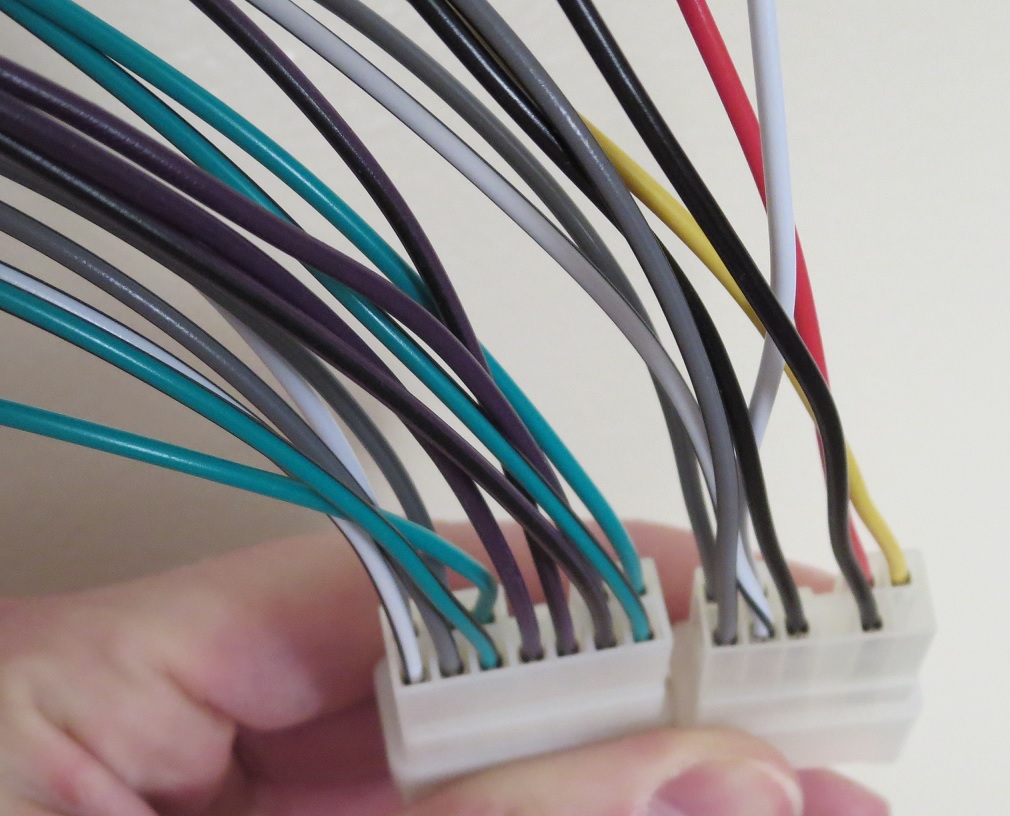

Toyota Factory Amp Upgrade harness (for Non-JBL Amplified vehicles)

Item Number: 4438

Wiring Pinout for Toyota Tundra

Toyota Amp Replacement and Upgrade kit Toyota Tundra Entune Non-JBL amp adapter Tundra Amp Connector Wiring

Description:

**If you need an adapter for a JBL vehicle, please email us and we can provide an adapter that has the correct wiring for your vehicle**

This adapter will connect to a Toyota Non-JBL factory amp wiring harness. The adapter provides bare wire ends for connection to an aftermarket amplifier. Wire leads are 8-inches. Wires are color coded using standard automotive wire conventions (Gray - Right Front +, Gray/Black - Right Front -, White - Left Front +, White/Black - Left Front -, etc.). The pinout for these connections is provided here.

You will recieve:
-1 10-pin Toyota amp harness connector/adapter
-1 12-pin Toyota amp harness connector/adapter

Purchase:

Price: $15.50

Toyota Tundra and Tacoma Speaker connectors:

We have speaker connectors available for most Tundra and Tacoma trucks. These connectors are used when upgrading your OEM speakers to avoid cutting the factory wire. There are several different types of connectors depending on the truck and the configuration of the audio system of your truck. Please CLICK HERE to see the compatibility information and the purchase links for these adapters!

Tundra Tweeter AdapterTacoma Tweeter AdapterToyota JBL Speaker Adapter

Installation/Examples:

Installation information on TundraTalk.net
Installation example on Tundras.com

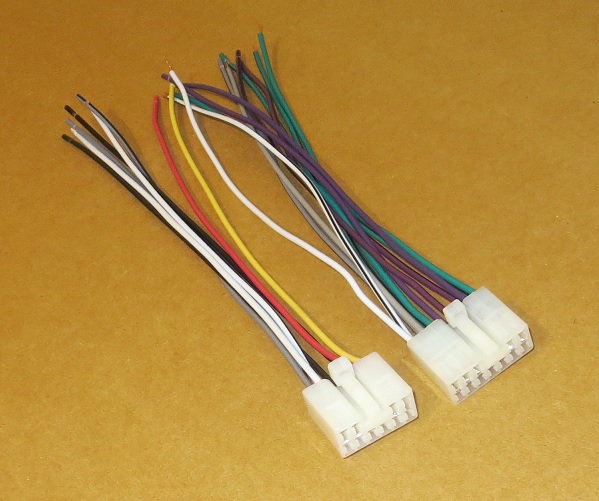

Reverse Toyota Factory Amp Upgrade harness

Item Number: 4439

Toyota Tundra Retain Amp Adapter

Jumper for Tundra or Tacoma amp

Description:

This adapter will connect to a Toyota Non-JBL factory amp. The adapter provides bare wire ends for connection to an aftermarket amplifier or processor. Wire leads are 8-inches. Wires are color coded similar to the #4438 harness above, using standard automotive wire conventions (Gray - Right Front +, Gray/Black - Right Front -, White - Left Front +, White/Black - Left Front -, etc.). The pinout for these connections is provided here.

You will recieve:

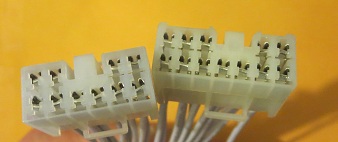

-1 10-pin Reverse Toyota amp harness connector/adapter
-1 12-pin Reverse Toyota amp harness connector/adapter

Purchase:

Price: $13
