Aftermarket Headunit Installation Adapters (for 2013-2018 Toyota vehicles)

For 2004-2012 Models, CLICK HERE
For 2019+ Models, CLICK HERE

    The following 4 adapters and the AXXESS ASWC-1 will be used to install an aftermarket headunit in your Toyota:
  • Backup Camera/Steering Wheel Control Adapter: Retains the OEM backup camera (if applicable), Steering Wheel Controls, and the Auxiliary input. Connects directly to the AXXESS ASWC-1
  • USB adapter: Retains the USB port in your console and allows it to be connected to the aftermarket headunit.
  • Metra 70-1761 or AHH-70-1761 Pioneer Direct Wire Harness or AHH-70-1761SO Sony Direct Wire Harness or AHH-70-1761ATOTO ATOTO Headunit Direct Wire Harness: Connects +12V, Ground, and Speakers
  • AM/FM adapter: Retains OEM AM/FM antenna
  • AXXESS ASWC-1: Interfaces with the OEM steering wheel controls (if applicable). Connects directly to the Backup Camera/Steering Wheel Control Adapter. This is not needed if you don't have steering wheel controls.

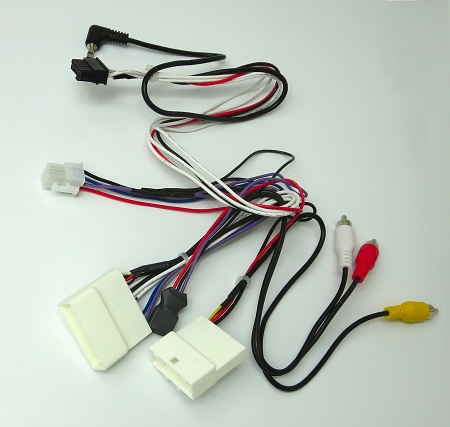

28-pin adapter (Backup Camera/Steering Wheel Control Adapter)

Item Number: 7558

Toyota Backup Camera

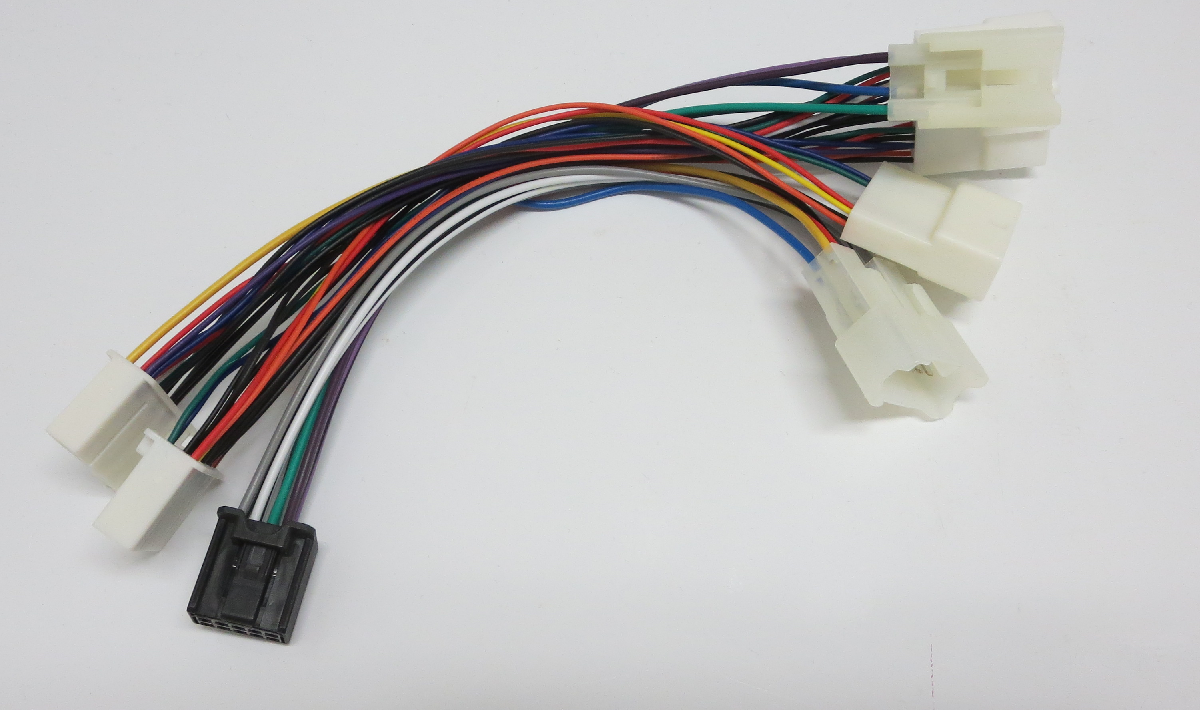

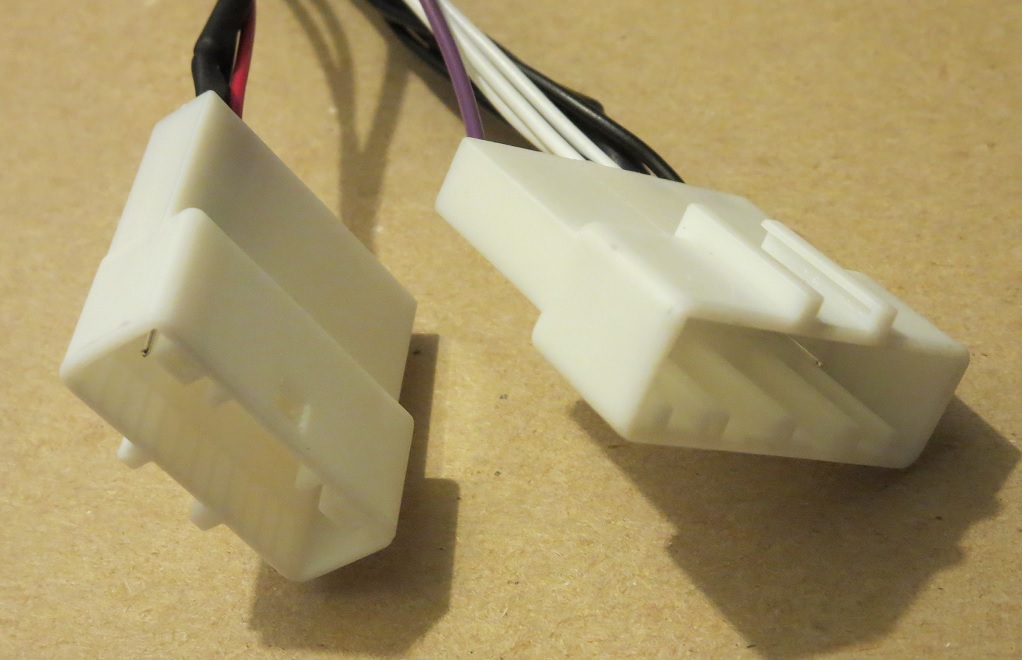

24-pin Toyota Connector

Description:

Install a new headunit and maintain backup camera functionality.

Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? This harness maintains many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit.

The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.

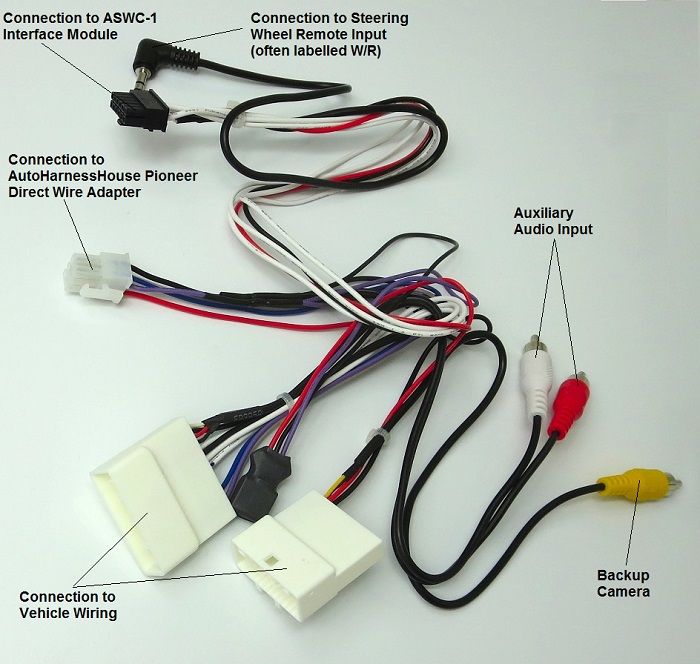

The harness connects in the place of the 28-pin and 24-pin connectors pictured here It will also provide the following signals to your new headunit:
-Backup camera functionality (connected to the new unit via RCA connector)
-Auxiliary inputs(connected to the new unit via RCA connector. ***Analog audio input only. USB is also available below***)
-Steering wheel controls (provided to the new unit via 3.5mm connector pictured here. The AXXESS ASWC-1 UNIVERSAL INTERFACE is required to maintain steering wheel controls. See more information below***
-Reverse gear signal (provided as a wire to be connected to the new unit).
-Vehicle Speed Sensor (VSS) signal.
-E-brake signal (***24-pin vehicles only***)

You will receive:
-1 Backup Camera Retrofit Harness
-1 16-pin to 24-pin adapter harness (Only if option is selected at payment. See compatibility below for more information)

The harness is 100% plug and play. No splicing the stock wiring harness. Does not disturb stock appearance.

Toyota Backup Camera

Please find the proper dash kit for your Vehicle (along with tons of other wiring information) in our NEW Vehicle Wiring & Compatibility Database:

Aftermarket Car Stereo/Navigation Installation kits

Purchase:

Price: $54 (with backup camera) or $27 (without backup camera)

Note that the version without the backup camera (the $27 version) may not include the 6-pin direct wire adapter connector unless it is requested. This 6-pin connector will make this adapter plug and play when used with the direct wire adapter. If you need it, please email us to request this after you have placed the order.

Does the Backup Camera Currently Display on the OEM Headunit?
Backup Camera Connector

USB adapter:

Toyota USB adapter

This adapter will retain USB function when you install an aftermarket headunit in your 2010-2015 Toyota (Also fits some 2016 Toyotas)

Price: $17

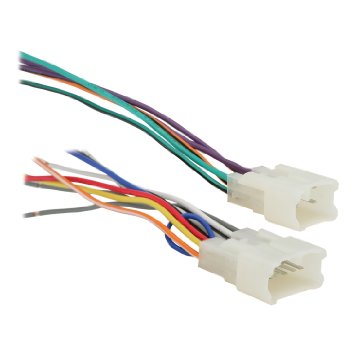

Metra 70-1761:

Metra 70-1761

The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Option 2 (Upgrade): Direct wire harness for Pioneer Headunits
Metra 70-1761

The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your vehicle. It is pre-wired with the Pioneer connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE)

Direct wire harness: $17

Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module
Metra 70-1761 for Subaru and Pioneer

The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Toyota. It is pre-wired with the Pioneer connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE)

The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit)

Direct wire harness: $23

Please select EITHER Option 1 or Option 2. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Option 2 (Upgrade): Direct wire harness for Sony Headunits
Metra 70-1761

The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE)

Direct wire harness: $20

Please select EITHER Option 1 or Option 2. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

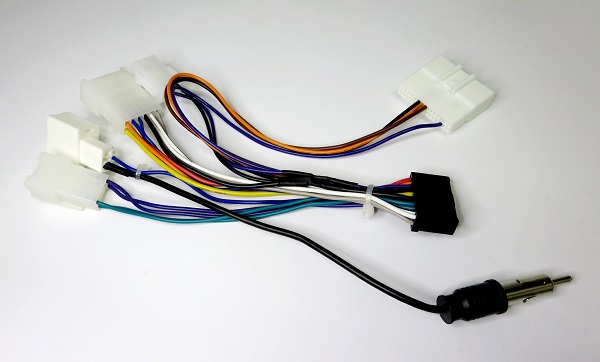

Option 2 (Upgrade for ATOTO S8 and F7): Direct wire harness for ATOTO Headunits
ATOTO Car Radio Direct Wire Adapter

The AHH-70-1761ATOTO harness is the simplest way to install a ATOTO headunit in your vehicle. It is pre-wired with the ATOTO connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE)

This adapter will also retain the steering wheel controls if your car has them! (it has the 28-pin connector attached) It will not retain the backup camera without other adapters.

DO NOT ORDER THE AXXESS ASWC-1 WITH THIS ADAPTER. THIS ADAPTER INCLUDES EVERYTHING THAT YOU NEED TO CONNECT YOUR STEERING WHEEL BUTTONS TO THE ATOTO.

IMPORTANT: You do not need to buy the AM/FM adapter with this adapter. The AM/FM adapter is integrated into the ATOTO adapter!

ATOTO Direct wire harness: $29

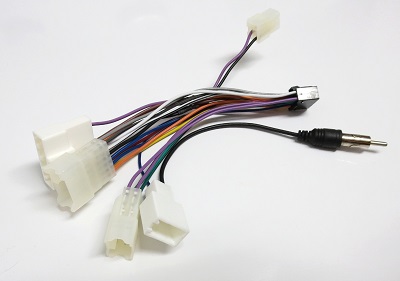

Option 3 (Upgrade for ATOTO A6PF only): Direct wire harness for ATOTO Headunits
ATOTO A6 Professional Car Radio Direct Wire Adapter

The AHH-70-1761ATOTO-A6PF harness is the simplest way to install a ATOTO A6PFheadunit in your vehicle. It is pre-wired with the ATOTO connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE)

This adapter will also retain the steering wheel controls if your car has them! (it has the 28-pin connector attached) It will not retain the backup camera without other adapters.

DO NOT ORDER THE AXXESS ASWC-1 WITH THIS ADAPTER. THIS ADAPTER INCLUDES EVERYTHING THAT YOU NEED TO CONNECT YOUR STEERING WHEEL BUTTONS TO THE ATOTO.

IMPORTANT: You do not need to buy the AM/FM adapter with this adapter. The AM/FM adapter is integrated into the ATOTO adapter!

ATOTO Direct wire harness: $29

Do you have a Toyota Vehicle with the 20-pin connector(pre-2013)
Vehicle Make:

AM/FM adapter harness:

Toyota FM Radio adapter

The AM/FM antenna adapter will retain the AM/FM radio antenna.

Price: $19

Axxess ASWC-1 Steering Wheel Control Adapter:

AXXESS ASWC-1

The AXXESS ASWC-1 connects your car's steering wheel audio controls to select aftermarket car stereos.

Price: $68


Installation:

The basics of the installation are depicted here:

Camera Connection
(click to enlarge)

Install the harness
-Verify that the vehicle is off.
-Carefully remove the plastic cover around the head unit and unscrew/unbolt as appropriate. Disconnect and remove the stock headunit.
-Connect the 24-pin and 28-pin connectors on the AutoHarnessHouse.com harness to the corresponding connectors on the vehicle's wiring harness.
-Connect both black ground terminals (If your harness has them) to a screw or bolt behind the dash. Note that these terminals must make contact with a metal surface for this harness to operate properly.

Connect the aftermarket headunit to the harness as follows (If you are not using the Sony, Pioneer, or ATOTO Direct wire adapter):
-If you are not using the Direct Wire Adapter for Pioneer (AHH-70-1761), Sony (AHH-70-1761SO), or ATOTO (AHH-70-1761ATOTO), cut off the 6-pin interface connector.
-Connect the purple wire to the back-up lamp input wire on the new headunit. This is the wire that triggers the backup camera when your car is shifted into reverse. There is no need to connect the headunit wire to the backup lamp. This harness provides that connection.
-Connect the yellow RCA connector to the backup camera input connector on the headunit
-Connect the red and white RCA connectors to the auxiliary audio input connector on the headunit
-Connect the 3.5mm plug to the "Remote wired input" plug on the back of the unit.
-Connect the red wire to the same switched 12V source that your headunit is connected to. This wire is a power wire for the AXXESS ASWC-1 UNIVERSAL INTERFACE.

Using a Direct wire adapter? - Connect the aftermarket headunit to the harness as follows (Sony, Pioneer, or ATOTO Direct wire adapter):
-The Direct Wire Adapter for Pioneer (AHH-70-1761), Sony (AHH-70-1761SO), or ATOTO (AHH-70-1761ATOTO) will have a 6-pin interface connector. Connect this connector to the 28-pin adapter sold on this page!
-(For Sony or Pioneer Headunits) Connect the red and white RCA connectors to the auxiliary audio input connector on the headunit
-(For Sony or Pioneer Headunits) Connect the 3.5mm plug to the "Remote wired input" plug on the back of the unit.
-(For Sony or Pioneer Headunits - ATOTO units do not require the AXXESS ASWC-1 to retain steering wheel controls) Connect the red wire to the same switched 12V source that your headunit is connected to. This wire is a power wire for the AXXESS ASWC-1 UNIVERSAL INTERFACE.

Configure the headunit to use the reverse camera:
-This configuration process is different for every headunit. Pioneer headunits normally come preconfigured to accept the camera but it is possible that it must be reconfigured. This is performed by navigating to the home screen and navigating to "System" > "Camera Polarity" > "Battery"

Configure the steering wheel controls (Does not apply to the ATOTO headunit installation because ATOTO headunits do not require the ASWC-1)
-This installation will require the AXXESS ASWC-1 UNIVERSAL INTERFACE to properly maintain steering wheel controls. Most vehicles should be automatically recognized by the AXXESS ASWC-1. If the unit does not automatically recognize the car, reprogram the ASWC-1 by pressing the reset button on the ASWC-1 for 3 seconds, release, and then follow the instructions in the ASWC-1 installation guide.

Compatibility:

For Subaru Models, please go here! The compatibility varies by model and the Aftermarket Installation page will help you identify the correct parts.

2012-2013 Toyota 4 Runner (With Backup Camera only will require 16-pin adapter harness - Non-Backup Camera models use the 20-pin adapter sold here)
2014-2019 Toyota 4 Runner
2012-2014 Toyota Camry (Will require 16-pin adapter harness)
2015-2017 Toyota Camry
2012-2019 Toyota Corolla
2013 Toyota Highlander (With Backup Camera only will require 16-pin adapter harness - Non-Backup Camera models use the 20-pin adapter sold here)
2014-2019 Toyota Highlander
2012-2015 Toyota Prius (Will require 16-pin adapter harness)
2016-2018 Toyota Prius
2013 Toyota RAV 4 (Will require 16-pin adapter harness)
2014 Toyota RAV 4 (Some will require 16-pin adapter harness)
2015-2018 Toyota RAV 4
2012-2013 Toyota Sienna (With Backup Camera only will require 16-pin adapter harness - Non-Backup Camera models use the 20-pin adapter sold here)
2014-2017 Toyota Sienna
2012-2013 Toyota Tacoma (Will require 16-pin adapter harness) (With backup camera displaying on OEM headunit only - Contact us for details on relocating an image from a rearview mirror)
2014-2019 Toyota Tacoma (With backup camera displaying on OEM headunit only - Contact us for details on relocating an image from a rearview mirror)
2014-2019 Toyota Tundra
2015-2018 Toyota Venza

**For older models, see the 20-pin adapter listed on this page**
