30-pin Head Unit Wiring Harness Adapter (Fits: 2018+ Toyota vehicles)

Item Number: AHH-7590

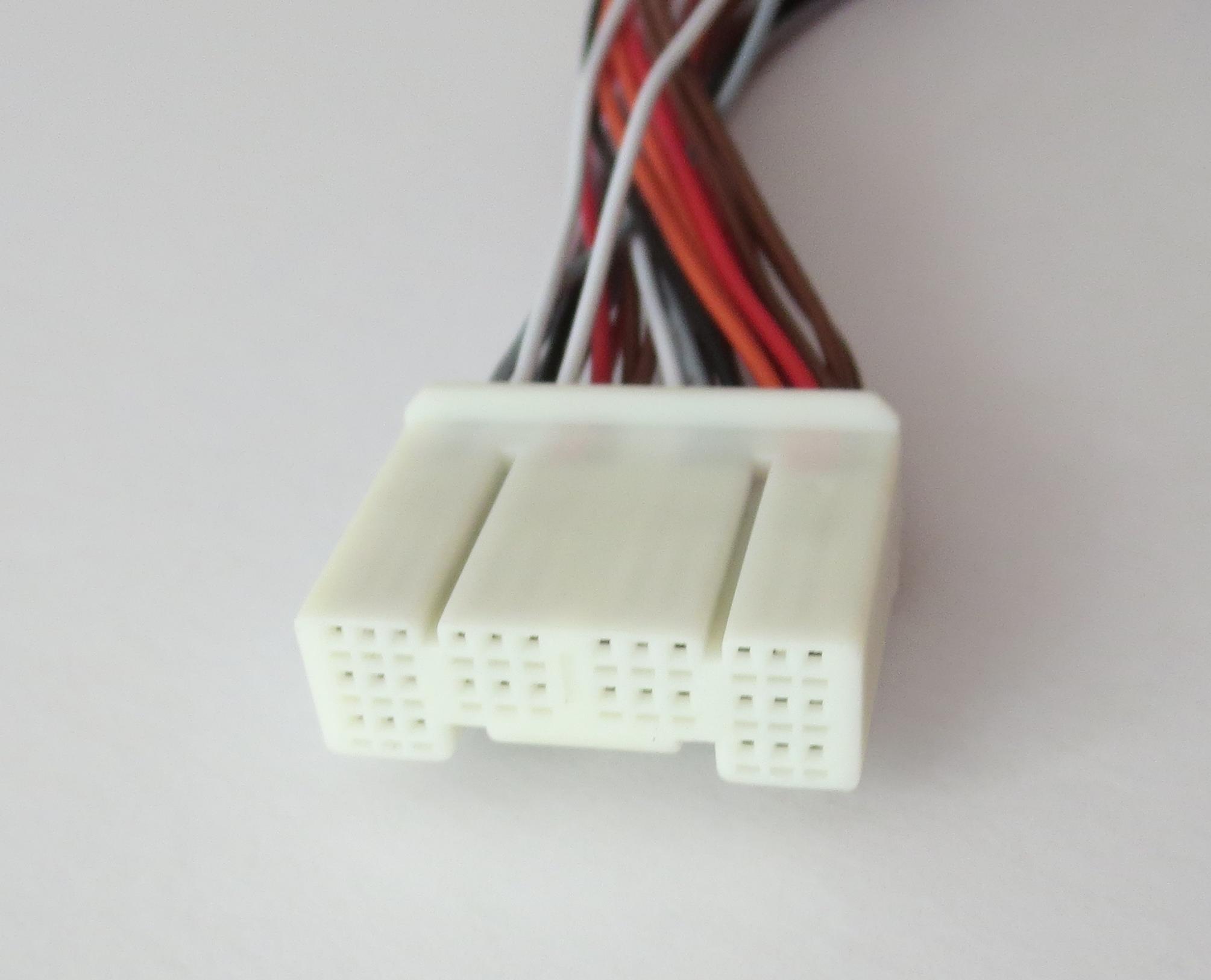

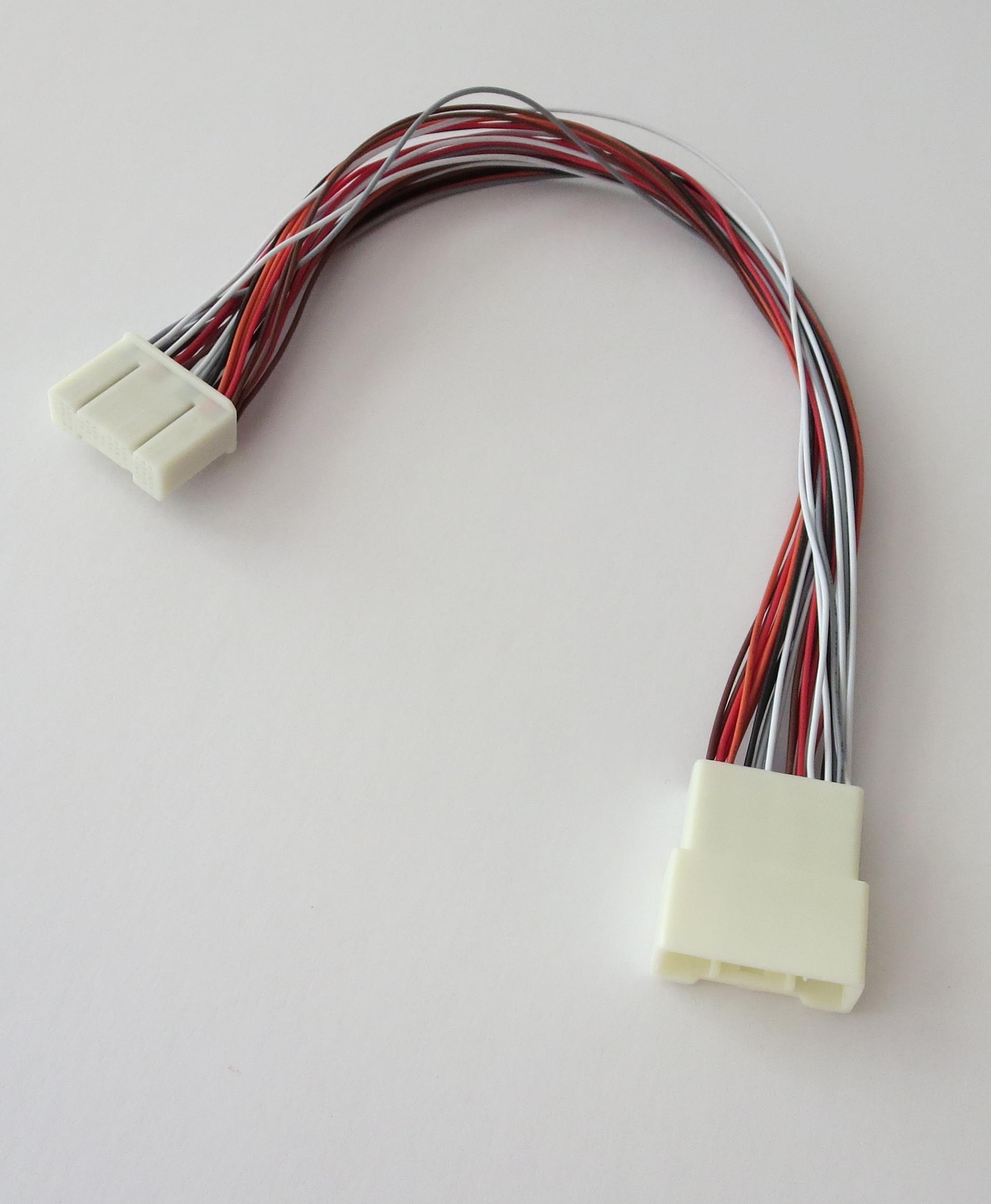

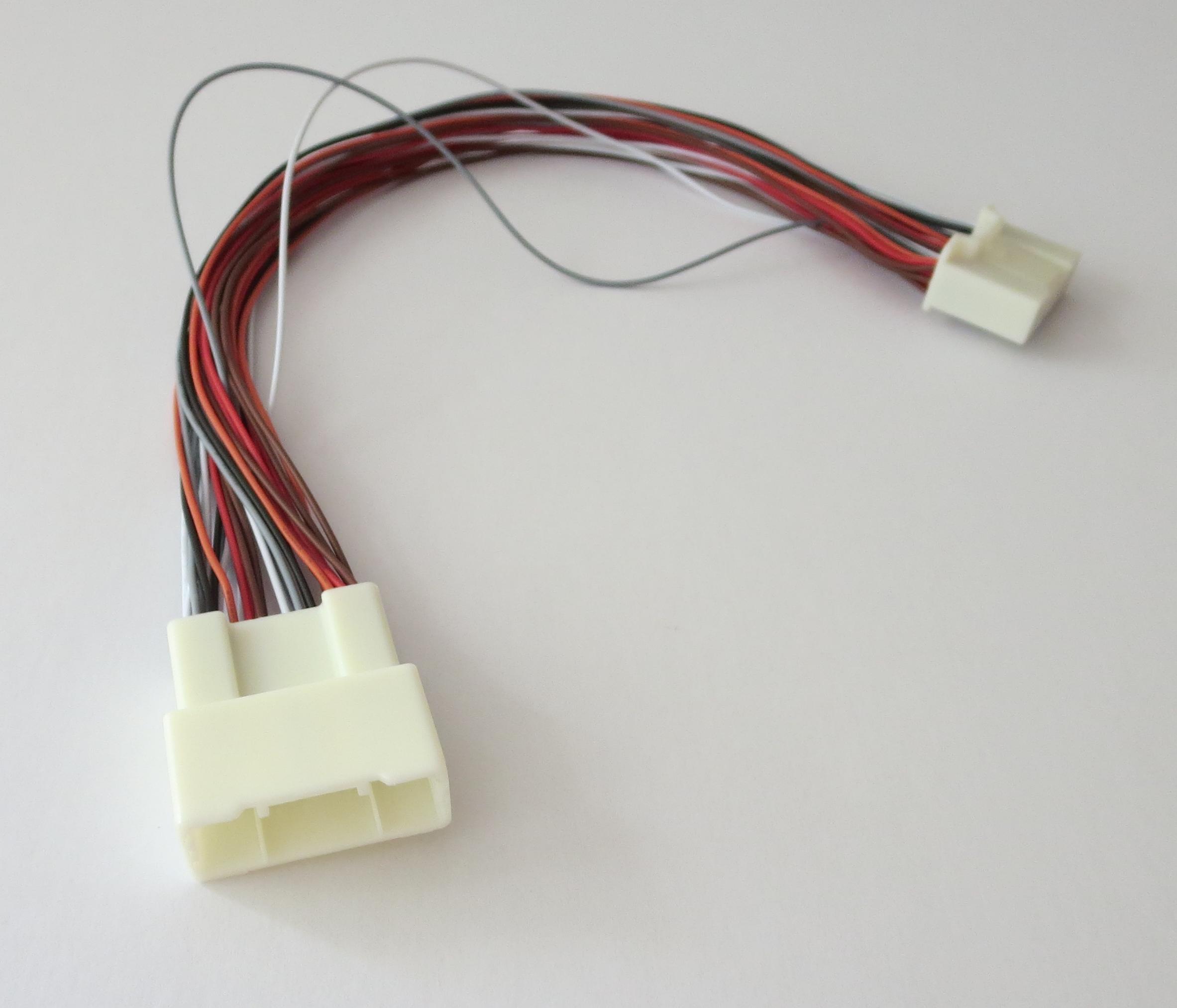

This is a 30-pin 'jumper-type' harness to fit many newer (2019+) Toyota vehicles. It will allow you to splice into signals in your Toyota wiring harness without risking damage to the factory wiring. This harness has the female and male connector. One end will connect to the factory harness and the other to the connector on the back of the OEM audio unit or navigation.

Note: This harness is about 11 inches long and has a 30-pin connector on both ends. If you need a custom harness with a different configuration (such as an RCA connector for the backup camera), just let us know what you need or what you are planning to accomplish.

This harness will allow you to modify or splice into many of the signals that connect to your vehicle (particularaly the bakup camera signals.

There are 2 28-pin connectors on the back of these Toyota headunits. The 28-pin adapter is available here.

This harness can also be cut and used to restore functionality when an aftermarket head unit is installed. This eliminates the need to cut factory wiring to splice into the existing wires.

Installation:

This harness connects between the stock head unit and the car's wiring harness. The connectors are fitted with pins that include every connection to the head unit. This harness should be connected between the head unit and wiring harness and used to tap the connections into the headunit without splicing or cutting the factory wiring harness. Additionally, this harness works to make connections to the stock wiring when installing an aftermarket radio/headunit.

Purchase:

Price: $33.00

Vehicle Fitment:

(If a known model is not listed, let us know)

2019-2025 Toyota 4Runner
2019-2022 Toyota Avalon
2023-2025 Toyota bZ4X
2018-2025 Toyota Camry
2019-2025 Toyota Corolla
2020-2025 Toyota Prius
2019-2025 Toyota RAV4
2021-2025 Toyota Sequoia
2018-2025 Toyota Sienna
2020-2025 Toyota Tundra
2020-2025 Toyota Tacoma
2021-2025 Toyota Venza
2021-2025 Toyota GR Yaris
