Direct wire harness for ATOTO S8, F7 and 10-inch S8MS Headunits - NOT S8 Lite or the 7-inch and 9-inch A6PF/S8MS (fits 1993-2010 Subaru - Compatibility information below)

Item Number: AHH-70-8901ATOTO

IMPORTANT: This adapter fits the 10-inch ATOTO S8MS (sold as S8G1104MS, S8EG1104MSB or S81104MSFX), and the 10.1-inch ATOTO A6 PF (A6G110PF), but does NOT fit the 7-inch or 9-inch S8MS, the S8 Lite, or the 7-inch and 9-inch A6 PF models - those units use a different connector. If you are installing one of those, please click here to go to the correct page.

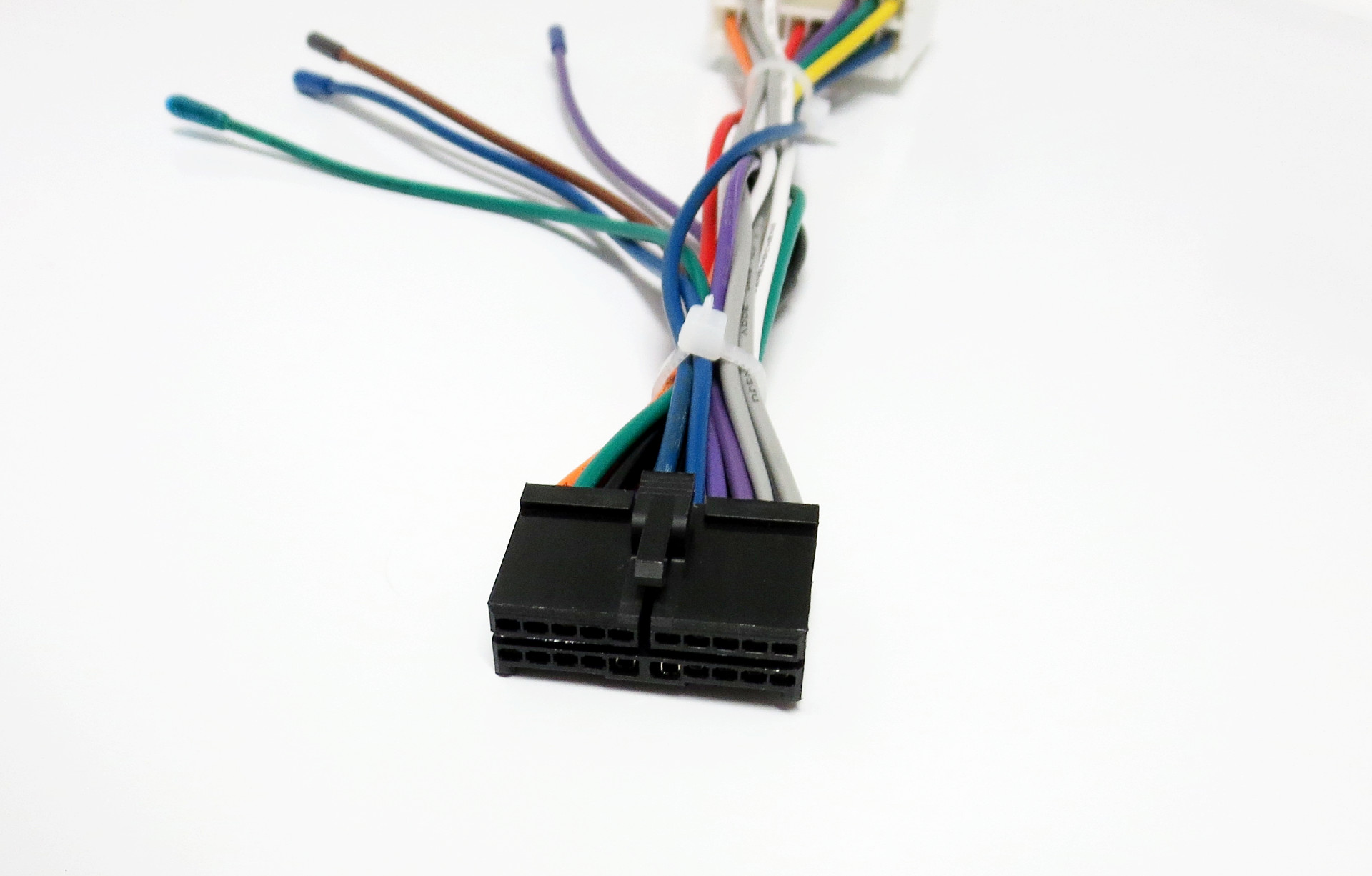

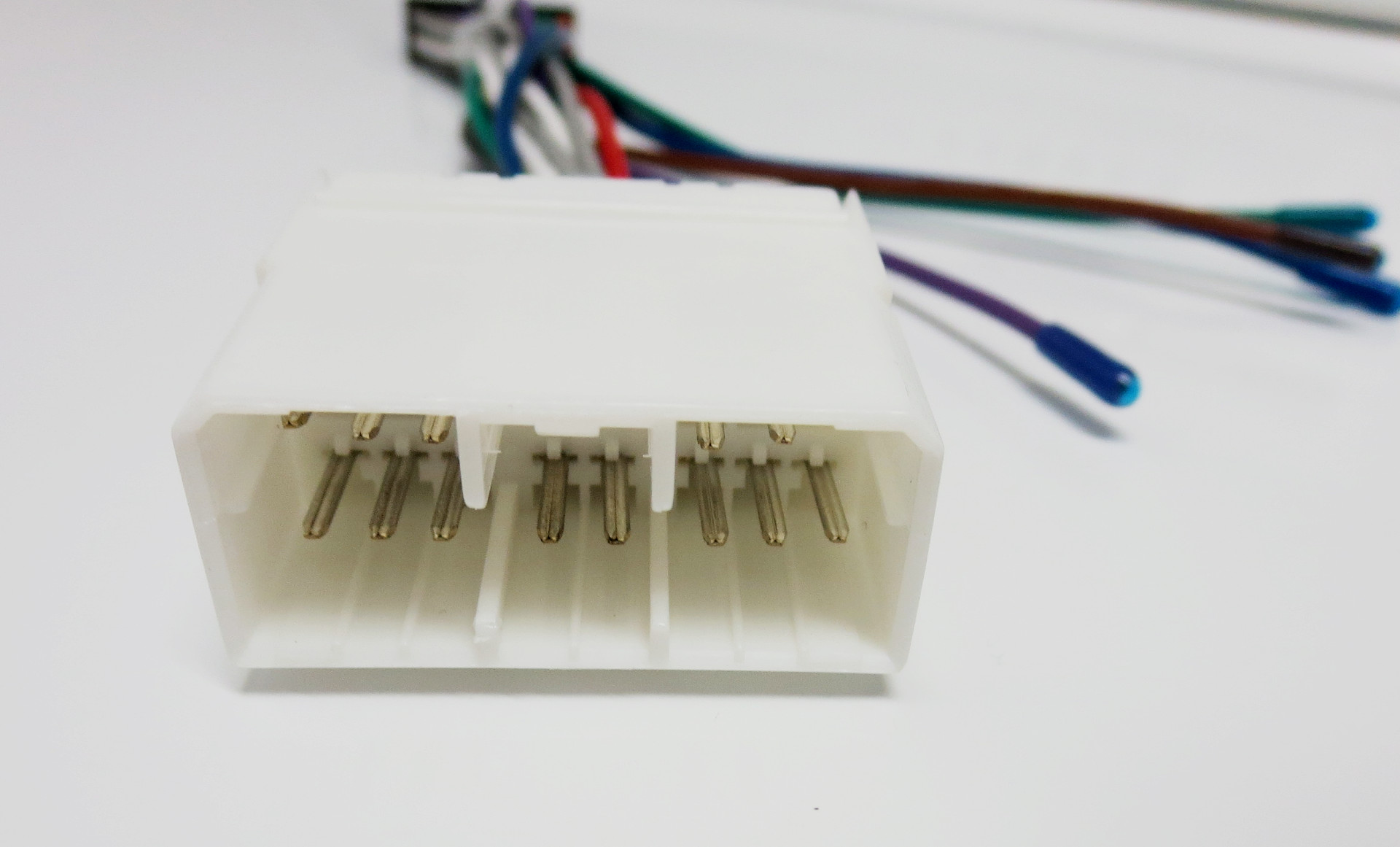

This harness is the simplest way to install an ATOTO headunit in your 1993-2010 Subaru with the 14-pin connector. The 14-pin Subaru connector is pre-wired with the ATOTO connector on 1 end and the Subaru connector on the other.

What's included:

• Reverse, E-brake, and Steering wheel (KEY+ and KEY-) signals are provided from the ATOTO connector since they will need to be connected elsewhere on the vehicle. These signals are not connected to the 14-pin adapter.
• For installations with the JDM HVAC panel, see the adapters listed here: https://www.autoharnesshouse.com/AHH-JDM.html

Installation:

1) Just connect both ends (to the ATOTO radio unit and to the Vehicle)
2) Connect the Reverse Signal if needed (Reverse is needed only if you will be connecting a backup camera)

If you have steering wheel buttons, you'll need to connect those at the 24-pin connector. To use this, use this adapter!

If you would like us to connect the 24-pin connector to the steering wheel buttons for you, just email us with this request. We don't mind making these small/custom modifications for you!

Purchase:

Price: $34.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Subaru
1994-2008 Forester (w/o nav)
2007-2010 Forester (with nav) and 2011-2012 Forester with TomTom Nav
1995-2007 Impreza (w/o nav)
2007-2009 Impreza (with nav)
1995-2009 Legacy (w/o nav) - JDM HVAC panel, see this page:: https://www.autoharnesshouse.com/AHH-JDM.html
1995-2009 Outback (w/o nav) - JDM HVAC panel, see this page:: https://www.autoharnesshouse.com/AHH-JDM.html
1995-2007 WRX (w/o nav)
2007-2009 WRX (with nav)
1994-1998 Subaru Sambars (this model was not sold in the US market)
***This harness is not compatible with any 2016 or newer Subaru vehicle. Please contact us (inquiry@autoharnesshouse.com) for the correct harness.

ATOTO Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
DOES NOT FIT the 7-inch or 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF) - EXCEPT the 10.1-inch A6 PF, which DOES fit this adapter, listed below
ATOTO A6 (will fit older A6 models only)

ATOTO F7WE
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT the ATOTO S8 Lite or the ATOTO S8 MS models - with ONE exception, listed below, which DOES fit this adapter!
ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). Check the model number printed on your radio or shown on your receipt.
ATOTO A6 PF 10.1-inch floating screen - A6G110PF (despite the A6 PF name, this one uses the standard 20-pin connector, unlike the 7-inch and 9-inch A6 PF)
ATOTO A5L 10-inch floating screen - A5LG110T and A5LG110PT (the 7-inch A5L does NOT fit - it uses the other connector)
ATOTO S8 10.1-inch S8G1104PRN
ATOTO S8UP 10-inch (Sold On Amazon!)
DOES NOT FIT the newest ATOTO lines that switched to a 16-pin harness - the V10 (V10G110OC) and the S8 Gen4 (S84G110PB). Quick check: this adapter is for radios that come with a 20-pin power harness. If yours came with a 16-pin harness, email us before you order and we will tell you which adapter you need.
ATOTO X10 9-inch (Sold by AutoHarnessHouse - Lower price than Amazon!)
ATOTO X10 10-inch (Sold by AutoHarnessHouse - Great Deal!) - also X10G110E, X10G110ESM and X10G110PESM (the 10.1-inch X10 with the passenger / co-pilot screen)
ATOTO X10 12.5-inch X10G225E

We carry a compatible adapter for these other ATOTO models. Click here for the ATOTO A6PF / S8 Lite / S8 MS version of this same adapter. Please email us or check out the Similar items below.
