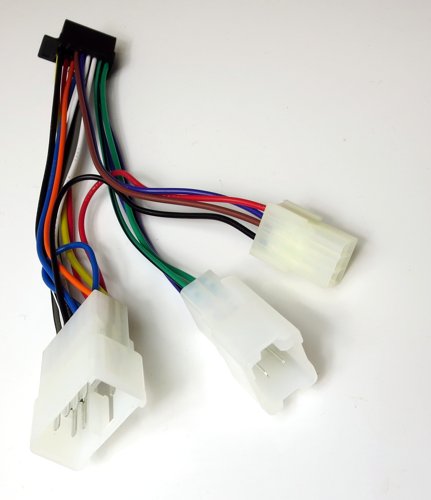

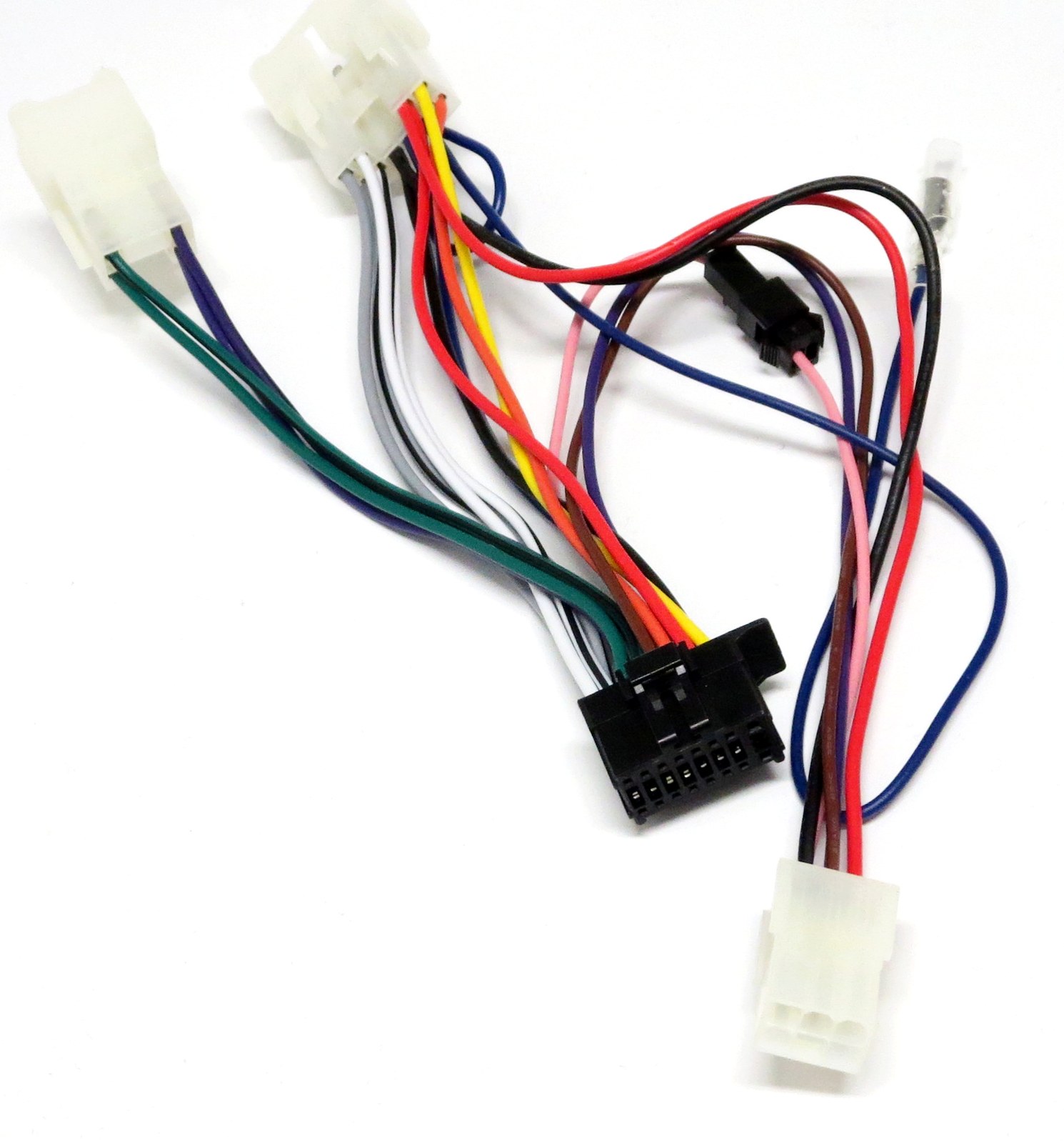

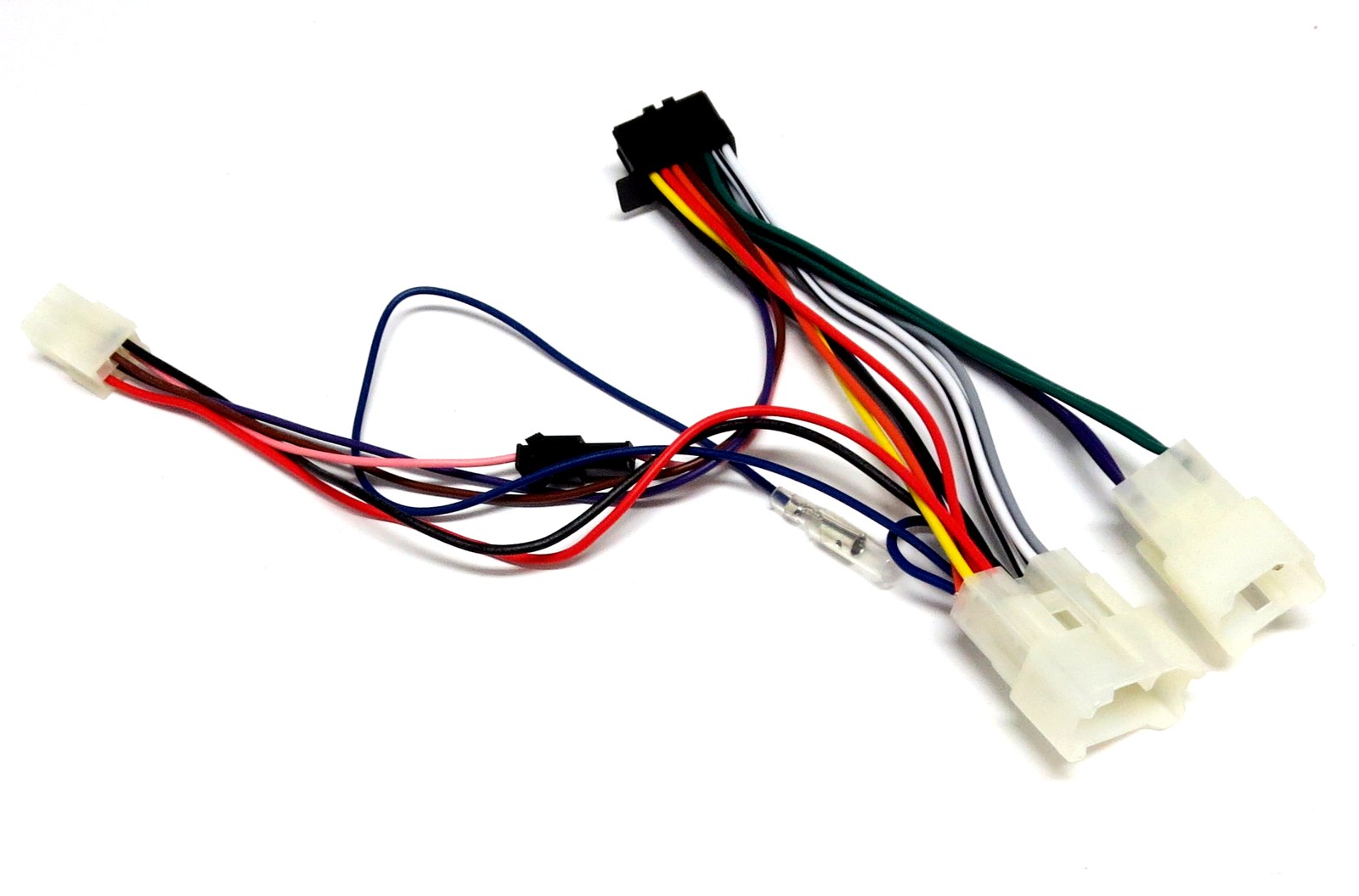

Direct wire harness for Pioneer Headunits (fits Toyota and Subaru - See compatibility information below)

Item Number: AHH-70-1761

This harness is the simplest way to install a Pioneer headunit in your Subaru or Toyota. It is pre-wired with the Pioneer connector on 1 end and the Subaru or Toyota connector on the other.

Subaru Owners: Please check out our full line of products for your vehicle HERE!

Toyota Owners: Please check out our full line of products for your vehicle HERE!

What's included:

-Reverse, Vehicle Speed, and E-brake signals are provided from the Pioneer connector since this will need to be connected elsewhere on the vehicle.
-+12v switched (Red) and Ground (Black) connections are provided for wiring of a steering wheel control interface or other +12v devices.

Installation:

1) Just connect both ends (to the Pioneer and to the Vehicle)
2) Connect the Vehicle Speed and E-brake signals (Reverse is needed only if you will be connecting a backup camera)

Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.

Purchase:

Price: $17.00

Option 1 : Direct wire harness for Pioneer Headunits Direct wire harness: $17

Option 2 : Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit) Direct wire harness: $23

Vehicle Fitment:

(If a known model is not listed, let us know)

Subaru
2019-2022 Ascent (non-Harman Kardon)
2013-2022 BRZ
2012-2014 Crosstrek XV (w/ nav)
2015-2022 Crosstrek (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 Forester (w/ nav)
2016-2022 Forester (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Impreza (w/ nav)
2015-2022 Impreza (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Legacy (w/ nav)
2015-2020 Legacy (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Outback (w/ nav)
2012-2014 Outback (non-nav with display screen - Harman Kardon models will need an additional wire added for the amp. Email when you order and we can add it for you.)
2015-2022 Outback (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 WRX and WRX STI (w/ nav)
2016-2022 WRX (both nav and non-nav models - non-Harman Kardon models only)

Toyota
1994-2018 All Models (except models with JBL audio)

Pioneer Headunit Compatibility

This harness will fit any 2014 or newer Pioneer headunit with a video screen.
(If your unit does not have a video screen, slight modification may be necessary. Click here for more details.)
Pioneer AVH-110BT
Pioneer AVH-120BT
Pioneer AVH-1300NEX
Pioneer AVH-1330NEX
Pioneer AVH-1500NEX
Pioneer AVH-1550NEX
Pioneer AVH-190DVD
Pioneer AVH-200EX
Pioneer AVH-201EX
Pioneer AVH-210EX
Pioneer AVH-211EX
Pioneer AVH-220EX
Pioneer AVH-270BT
Pioneer AVH-280BT
Pioneer AVH-290BT
Pioneer AVH-291BT
Pioneer AVH-2300NEX
Pioneer AVH-2330NEX
Pioneer AVH-2400NEX
Pioneer AVH-2440NEX
Pioneer AVH-2500NEX
Pioneer AVH-2550NEX
Pioneer AVH-310EX
Pioneer AVH-3500NEX
Pioneer AVH-4100NEX
Pioneer AVH-4200NEX
Pioneer AVH-500EX
Pioneer AVH-501EX
Pioneer AVH-521EX
Pioneer AVH-600EX
Pioneer AVH-601EX

Pioneer AVH-W4400NEX
Pioneer AVH-W4500NEX

Pioneer AVH-X2800bs
Pioneer AVH-X390bs
Pioneer AVH-X391BHS
Pioneer AVH-X4800bs
Pioneer AVH-X490bs
Pioneer AVH-X491BHS
Pioneer AVH-X5800BHS
Pioneer AVH-X7800BT

Pioneer AVH-ZL5150BT

Pioneer AVIC-5000NEX
Pioneer AVIC-5100NEX
Pioneer AVIC-5200NEX
Pioneer AVIC-5201NEX
Pioneer AVIC-6200NEX
Pioneer AVIC-6201NEX
Pioneer AVIC-7200NEX
Pioneer AVIC-7201NEX
Pioneer AVIC-8200NEX
Pioneer AVIC-8201NEX
Pioneer AVIC-W6400NEX
Pioneer AVIC-W6500NEX
Pioneer AVIC-W8400NEX
Pioneer AVIC-W8500NEX

Pioneer DEH-80PRS
Pioneer DMH-100BT
Pioneer DMH-130BT
Pioneer DMH-160BT
Pioneer DMH-1500NEX
Pioneer DMH-1700NEX
Pioneer DMH-1770NEX
Pioneer DMH-240EX
Pioneer DMH-241EX
Pioneer DMH-2000NEX
Pioneer DMH-2600NEX
Pioneer DMH-2660NEX
Pioneer DMH-341EX

Pioneer DMH-C5500NEX
Pioneer DMH-C2550NEX
Pioneer DMH-C2500NEX
Pioneer DMH-W2700NEX
Pioneer DMH-W2770NEX
Pioneer DMH-W3000NEX
Pioneer DMH-W3050NEX
Pioneer DMH-W4600NEX
Pioneer DMH-W4660NEX
Pioneer DMH-WC6600NEX
Pioneer DMH-WC5700NEX
Pioneer DMH-WT3800NEX
Pioneer DMH-WT76NEX
Pioneer DMH-WT7600NEX
Pioneer DMH-WT8600NEX

Pioneer MVH-AV251BT
Pioneer MVH-AV290BT
Pioneer MVH-1400NEX
Pioneer MVH-210EX
Pioneer MVH-211EX
Pioneer MVH-2400NEX
Pioneer MVH-300EX
Pioneer MVH-S310BT

Pioneer SPH-DA02 AppRadio
Pioneer SPH-DA01 AppRadio
Pioneer SPH-DA120 AppRadio 4
Pioneer SPH-DA210 AppRadio 3
Pioneer SPH-DA100 AppRadio 2
Pioneer SPH-10BT

and MANY more...

Are you installing a Single DIN Pioneer headunit or a headunit that does not have an LCD display screen? This adapter is compatible with these headunits but a modification to the harness is necessary. Click Here for compatibility and instructions.
