Direct wire harness for ATOTO S8, F7 and 10-inch S8MS Headunits - NOT S8 Lite or the 7-inch and 9-inch A6PF/S8MS (fits 1998-2008 Honda/Acura - See compatibility information below)

Item Number: AHH-70-1721ATOTO

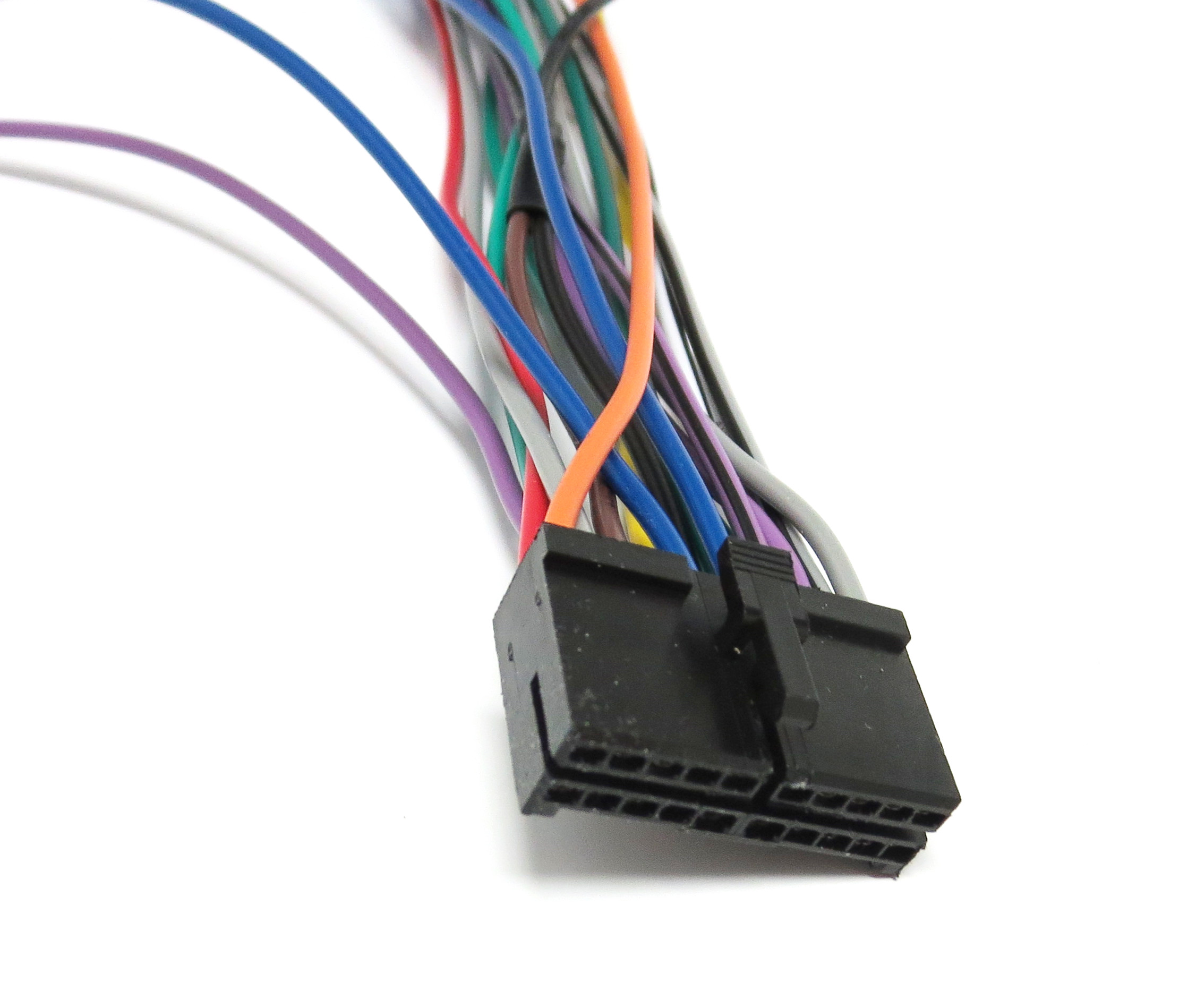

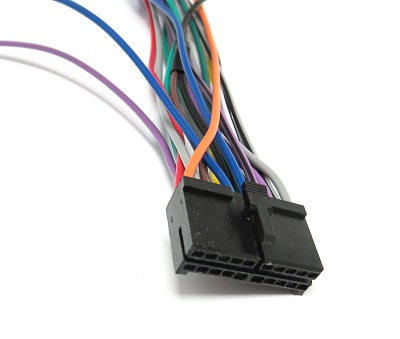

If you are installing a 7-inch or 9-inch ATOTO A6 PF, an S8 Lite, or a 7-inch or 9-inch S8MS, please click here to go to the correct page. The wiring connector shown here fits the standard ATOTO S8 and F7, plus the 10-inch S8MS (sold as S8G1104MS, S8EG1104MSB or S81104MSFX), and the 10.1-inch ATOTO A6 PF (A6G110PF) - it will NOT fit the 7-inch and 9-inch ATOTO A6 PF, the S8 Lite, or the 7-inch and 9-inch S8MS!

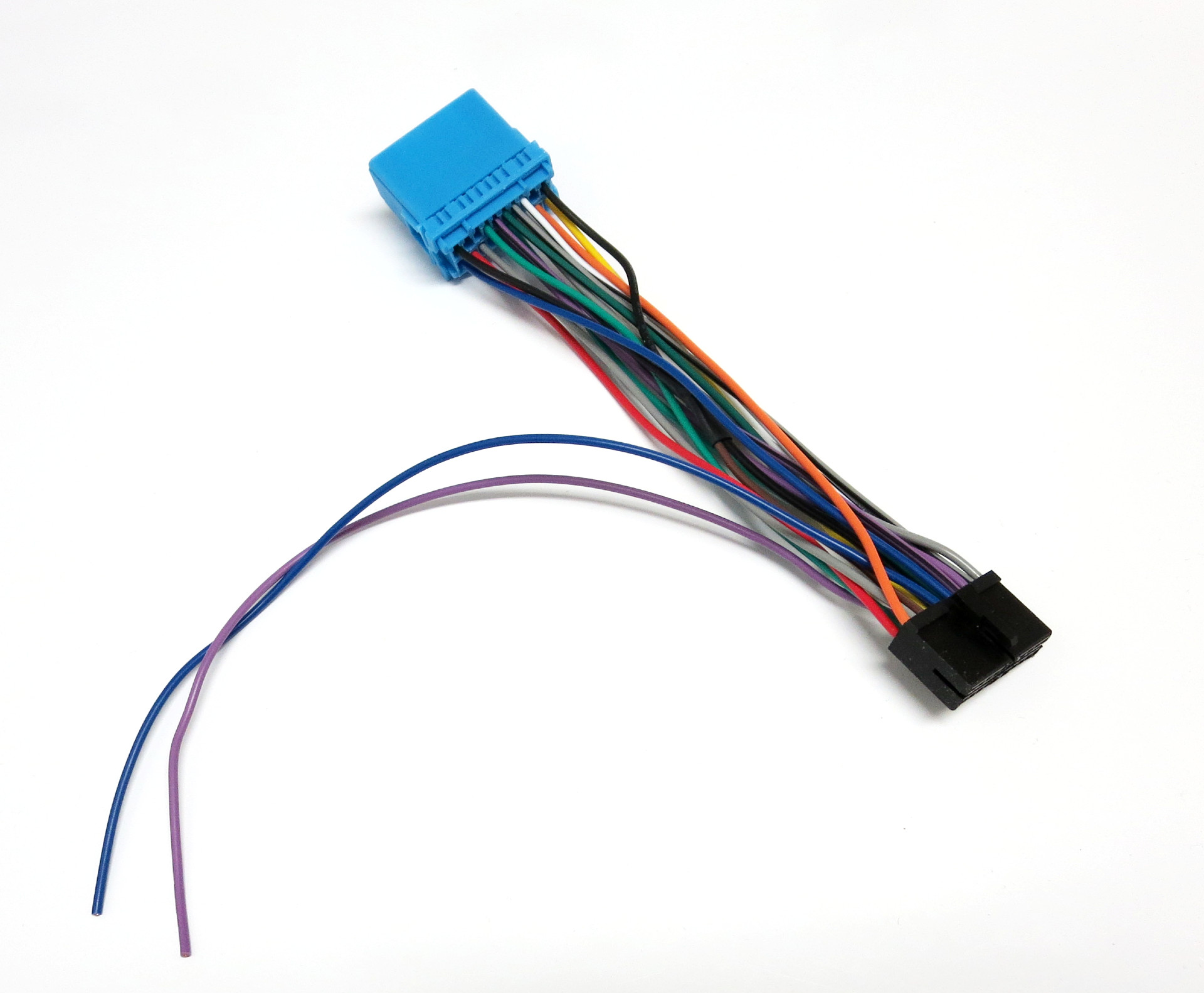

This harness is the simplest way to install an ATOTO headunit in your Honda or Acura. It is pre-wired with the ATOTO connector on 1 end and the Honda connector on the other.

What's included:

• Steering Wheel Control signals are wired for you. You won't need an interface like the AXXESS AXSWC-2! All that you'll need to do is program the steering wheel buttons using the ATOTO on-screen interface!
• Reverse signal is provided from the ATOTO connector. This will need to be connected to the vehicle if you are using a backup camera.
• E-brake signal is already connected to ground to bypass parking brake lockout.
• AM/FM turn-on wire is included for vehicles that have the BLUE AM/FM antenna power wire (this wire powers the AM/FM amplifier if the car is equipt)

Installation:

1) Just connect both ends (to the ATOTO and to the Vehicle)
2) Connect the Reverse signals if needed (Reverse is needed only if you will be connecting a backup camera)

Purchase:

Price: $27.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Acura
CL 1999 to 2003
INTEGRA 1999 to 2001
MDX 2001 to 2008
MDX 2009 to 2011 With Factory Navigation
NSX 2001 to 2005
RDX 2007 (Non Navigation)
RL 1999 to 2008
RSX 2002 to 2006
TL 1999 to 2007
TSX 2004 to 2008 (With and Without Factory Navigation)

Honda
ACCORD 1998 to 2002 EX/LX/DX
CIVIC and CIVIC SI 1999 to 2005
CRV 1999 to 2006
ELEMENT 2003 to 2011
INSIGHT 2001 to 2006
ODYSSEY 1999 to 2007
ODYSSEY 2008 to 2010 With Factory Navigation
PILOT 2003 to 2008 LX Only
PILOT 2003 to 2008 Non LX, Non Navigation
PRELUDE 1999 to 2001
RIDGELINE 2006 to 2008
S2000 2000 to 2009

ATOTO Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
DOES NOT FIT the 7-inch or 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF) - EXCEPT the 10.1-inch A6 PF, which DOES fit this adapter, listed below
ATOTO A6 (will fit older A6 models only)

ATOTO F7WE
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT the ATOTO S8 Lite or the ATOTO S8 MS models - with ONE exception, listed below, which DOES fit this adapter!
ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). Check the model number printed on your radio or shown on your receipt.
ATOTO A6 PF 10.1-inch floating screen - A6G110PF (despite the A6 PF name, this one uses the standard 20-pin connector, unlike the 7-inch and 9-inch A6 PF)
ATOTO A5L 10-inch floating screen - A5LG110T and A5LG110PT (the 7-inch A5L does NOT fit - it uses the other connector)
ATOTO S8 10.1-inch S8G1104PRN
ATOTO S8UP 10-inch (Sold On Amazon!)
DOES NOT FIT the newest ATOTO lines that switched to a 16-pin harness - the V10 (V10G110OC) and the S8 Gen4 (S84G110PB). Quick check: this adapter is for radios that come with a 20-pin power harness. If yours came with a 16-pin harness, email us before you order and we will tell you which adapter you need.
ATOTO X10 9-inch (Sold by AutoHarnessHouse - Lower price than Amazon!)
ATOTO X10 10-inch (Sold by AutoHarnessHouse - Great Deal!) - also X10G110E, X10G110ESM and X10G110PESM (the 10.1-inch X10 with the passenger / co-pilot screen)
ATOTO X10 12.5-inch X10G225E

We carry a compatible adapter for these other ATOTO models. Click here for the ATOTO A6PF / S8 Lite / S8 MS version of this same adapter. Please email us or check out the Similar items below.
