Add a Factory Volume Knob: 2023+ Toyota Tundra & Sequoia Large Screen Head Unit Retrofit Harness

Item Number: AHH-392

Add the factory volume knob when you upgrade your 2023+ Toyota Tundra or Sequoia from the standard 8-inch screen to the 14-inch head unit! Trucks built with the 8-inch radio do not have the physical volume/tuning knob, and the factory wiring has no place to plug one in. This adapter harness adds the missing 8-pin volume knob connection so the OEM knob assembly works with your new 14-inch large screen radio.

The harness connects behind the head unit and is 100% plug and play - no splicing, no cutting, and no changes to your truck's wiring. Two connectors plug into the truck's existing 30-pin and 28-pin harness, two plug into the new 14-inch head unit, and the 8-pin lead plugs into the volume knob module that mounts in the dash. The 30-pin and 28-pin jumpers are built into this adapter, so you do not need to purchase those separately.

Compatibility:

-2023 and newer Toyota Tundra (8-inch to 14-inch OEM screen retrofit)
-2023 and newer Toyota Sequoia (same head unit connections)
-Works with both JBL and non-JBL systems. Important: your replacement 14-inch head unit must match the audio system your truck came with - JBL to JBL, or non-JBL to non-JBL. You cannot cross between the two. (An example non-JBL 14-inch Tundra unit is Toyota part number 86100-0C362.)
-2024+ Tacoma and 2025+ 4Runner: Toyota's wiring diagrams show similar head unit connections. Email us with your model year and head unit part number and we will confirm fitment before you order.

What's included:

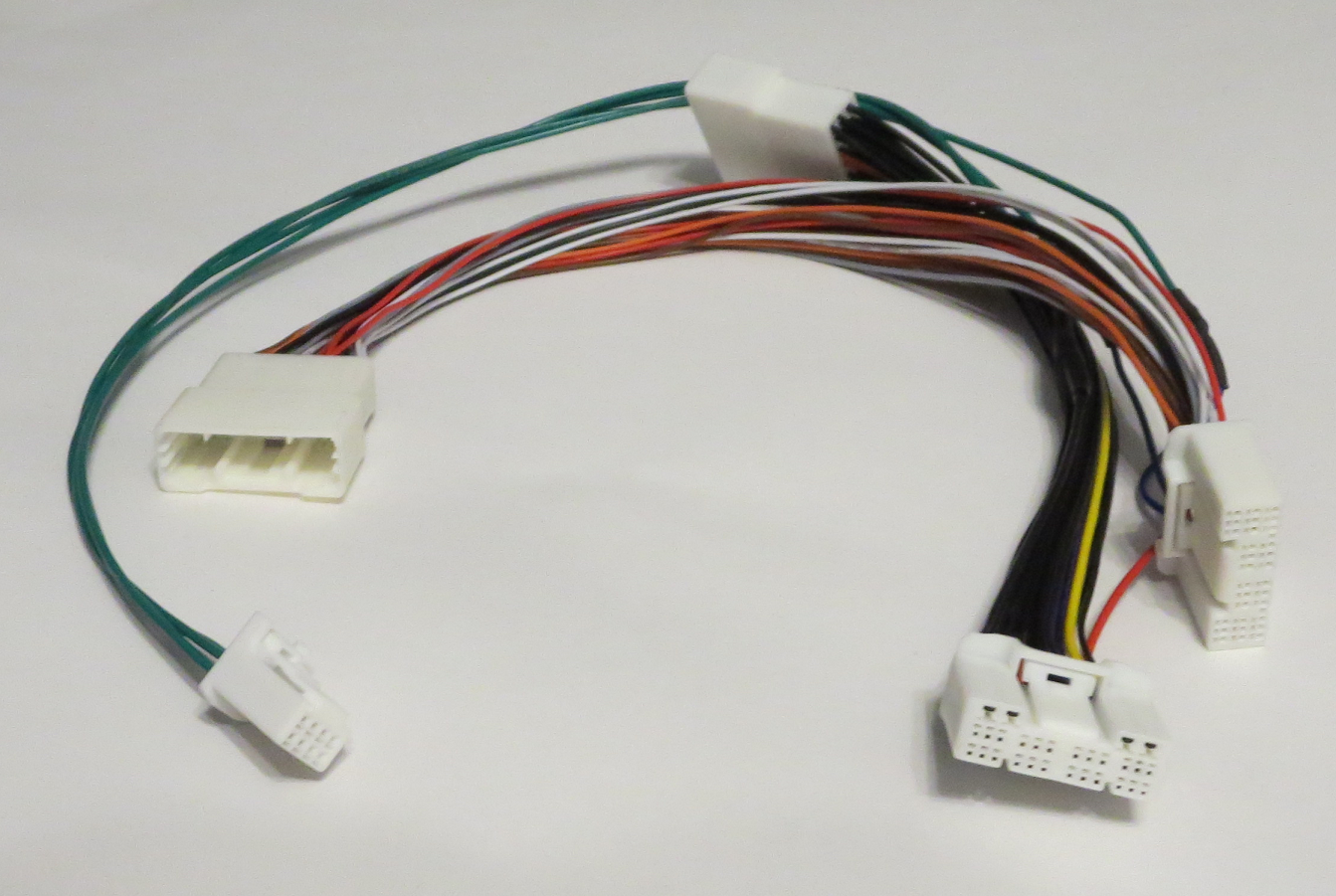

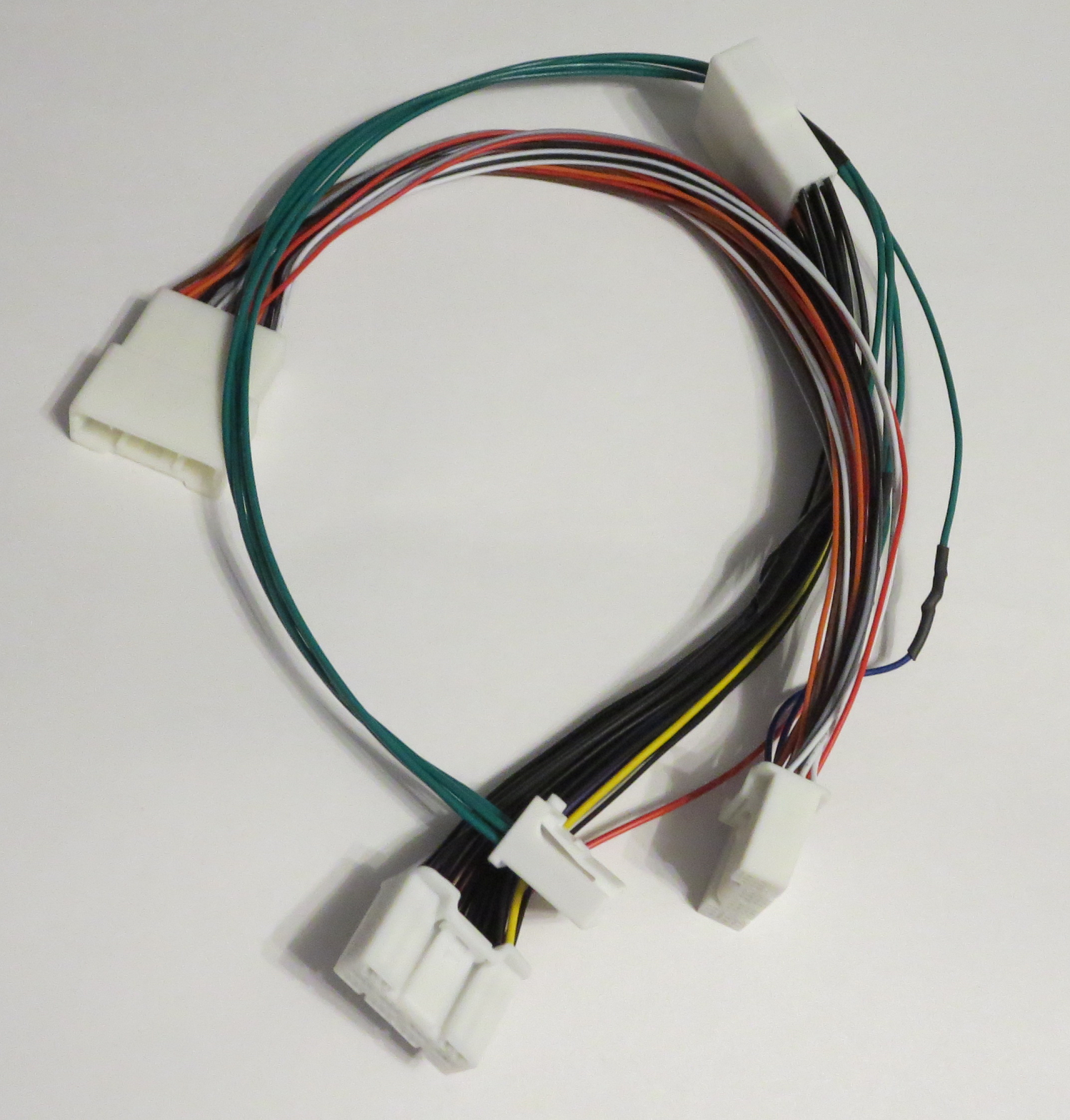

-1 Volume knob add-on adapter harness (8-pin volume knob module connection with the 30-pin and 28-pin head unit jumpers built in)

Not included: the OEM 14-inch head unit and the OEM volume knob/switch assembly. These can be sourced from a donor truck, a Toyota parts counter, or an online OEM parts seller.

Installation:

Remove the factory radio, connect the adapter between the truck's wiring and the new 14-inch head unit, then plug the 8-pin lead into the volume knob module mounted in the dash. Every connection is plug and play with no wiring work required. If you have any questions during your installation, email us at inquiry@autoharnesshouse.com and we are happy to help.

Purchase:

Price: $60.00
