38-pin Jumper Adapter for 2022+ Subaru and Toyota GR86 - Backup Camera, Steering Wheel Control and CAN Bus Signals Only
Item Number: AHH-7587
Please read before you order - this is NOT a speaker or power harness.
The 38-pin connector on these vehicles carries only the backup camera, steering wheel control (SWC) and CAN bus / data signals. There are no speaker wires, no power and no ground on it, so this adapter cannot be built with speaker breakouts and it will not feed an amplifier, line-output converter (LOC), or subwoofer. If you are adding an amp or a subwoofer, you do not need this part.
The speaker and power connections are on the separate 10-pin and 6-pin radio connectors. For those you want: the 10-pin/6-pin amplifier and subwoofer adapter set (rear speakers and a subwoofer feed), the 16-pin Starlink/telematics jumper (AHH-7880) with AX-LR20 load resistors for the front speakers (on these models the front speaker signals pass through the telematics module), or the 10-pin/6-pin direct wire adapter for a full head unit replacement.

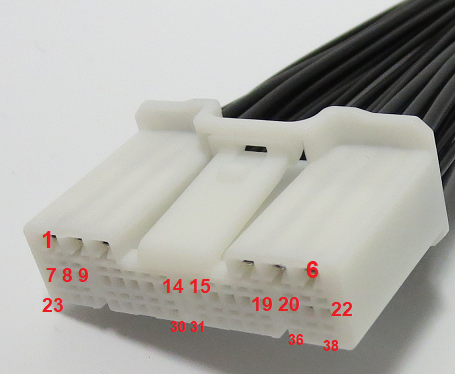

What this adapter is: a 38-pin "jumper" (T-harness) about 5 inches long with a 38-pin connector on each end. It plugs in between the factory 38-pin plug and the back of the head unit and passes every pin straight through, so you can splice your add-on device into the wire you need without cutting the factory wiring. Until you tap a wire, the car works exactly as before.
What is on the 38-pin connector - verified against the Subaru factory I/O specifications for every 2020-2026 model listed below. The pinout is the same on all of them:
| 38-pin connector pin | Signal |
|---|---|
| 8 | Reverse (backup) signal |
| 9, 10, 12 | Steering wheel switch 1 (+), steering wheel switch 2 (+), steering wheel switch ground |
| 26 | Rear camera ground |
| 27 | Rear camera power supply |
| 28, 29 | Rear camera video input (+) and (−) |
| 30, 31 | CAN bus 1 high / low (the bus the head unit talks on) |
| 14, 15 | CAN bus 2 high / low |
| 13 | Amplifier mute signal |
| 38 | Starlink DCM (telematics) mute signal |
| 17, 18 | Microphone 1 (+) and (−) |
| 20, 21 | Microphone 2 (+) and (−) |
| 19, 22 | Microphone detection, microphone power supply |
| 4, 6 | USB ground, USB power supply |
| 32, 33, 34, 35 | AUX ground, right AUX input, left AUX input, AUX jack detection |
| 1, 2, 3, 5, 7, 11, 16, 23, 24, 25, 36, 37 | Not used (pin 5 is a UART data line on the Legacy, Outback, Ascent and BRZ) |
On some models (the 2022 Outback, for example) the head unit ignores the pin 8 reverse wire and takes the reverse signal over CAN instead. There is no vehicle speed sensor (VSS) wire on this connector or on the other radio connectors - speed on these cars travels over the CAN bus. The steering wheel pins are normally used with an interface module such as the iDatalink Maestro SW.
Where the speakers and power actually are - the separate 10-pin and 6-pin connectors. These are what our 10-pin/6-pin amplifier and subwoofer adapters and direct wire adapters connect to (on cars with Starlink, the front speaker pair passes through the telematics module - see the 16-pin telematics jumper):
| 10-pin connector pin | Signal |
|---|---|
| 1, 5 | Right front speaker (+) / (−) |
| 2, 6 | Left front speaker (+) / (−) |
| 3 | Ignition (switched) power |
| 4 | Backup / battery power (always on) |
| 7 | Ground |
| 8 | Antenna power |
| 9 | Battery power (always on) |
| 10 | Illumination (+) |
| 6-pin connector pin | Signal |
|---|---|
| 1, 3 | Right rear speaker (+) / (−) |
| 2, 6 | Left rear speaker (+) / (−) |
| 4 | Shield ground (not present on all models) |
| 5 | Illumination (−) |
Common uses: retaining the factory backup camera or steering wheel buttons with an aftermarket head unit, adding a steering wheel control interface, connecting a CAN bus module, or building your own custom adapter on the new 38-pin platform. It is normally used together with 10-pin/6-pin adapters, which carry the power and speaker wiring - this part covers the signals those adapters do not.
Vehicle compatibility - taken from the factory wiring specifications for each model year:
| Model | Years with the 38-pin radio connector |
|---|---|
| Subaru WRX | 2022-2026 |
| Subaru Legacy | 2020-2025 |
| Subaru Outback | 2020-2025 (the redesigned 2026 Outback uses a different connector set - this part does not fit it) |
| Subaru Ascent | 2023-2026 |
| Subaru Crosstrek (incl. Wilderness) | 2024-2026 |
| Subaru Impreza | 2024-2026 |
| Subaru Forester (incl. Hybrid) | 2025-2026 (Forester Wilderness: 2026 only - the 2024-2025 Wilderness kept the older 28-pin wiring) |
| Subaru BRZ | 2022-2026 |
| Toyota GR86 | 2022+ (same platform and wiring as the BRZ) |
The 2013-2020 BRZ, 86 and FR-S and all 2016-2019 Subaru models use a 28-pin connector instead of this part. Harman Kardon vehicles use the same 38-pin connector but are wired differently at the amplifier - email us before ordering if your car has HK and you are planning audio work. Not sure which setup your Subaru has? Use our Subaru parts finder or see the newer tablet-style Subaru page.
Need something different? The standard part is a straight 5-inch jumper. If you need a different length, breakouts on specific pins, or a custom adapter for your project, email us with your vehicle and what you are trying to accomplish and we will quote it. Replacing the head unit in a 2022+ BRZ or GR86? See our complete custom install kit instead - it includes the camera, steering wheel, speaker and power wiring in one build.
What's included:
One 38-pin jumper harness, approximately 5 inches long, with a 38-pin connector on each end. It does not include speaker, power or ground wiring, RCA cables, or a steering wheel control interface module.
Installation:
Unplug the factory 38-pin connector from the head unit, plug one end of this adapter into the factory connector and the other end into the head unit (or into your aftermarket head unit's harness), then splice your add-on device into the wires for the pins you need. Nothing on the factory harness gets cut. If you are building your own adapter, the jumper can also be cut in the middle and the two halves used as pigtails for the car side and the head unit side.
Remember that the speaker, power and ground wires are on the 10-pin and 6-pin connectors, not on this one - those connections come from your 10-pin/6-pin adapter.
Purchase:
Price: $34.00
