Direct wire harness for ATOTO A6PF, S8MS & S8 Lite Headunits (fits 1995-2012 Nissan/Infiniti - See compatibility information below)

Item Number: AHH-70-7550ATOTO-A6PF

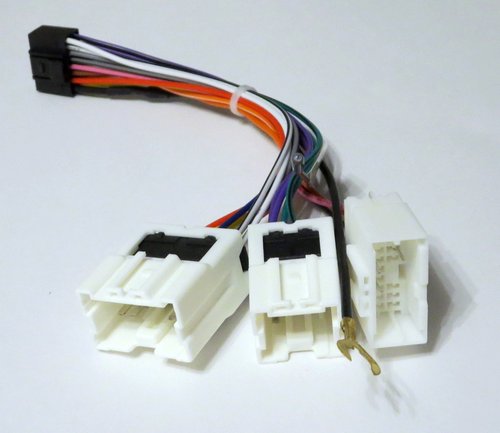

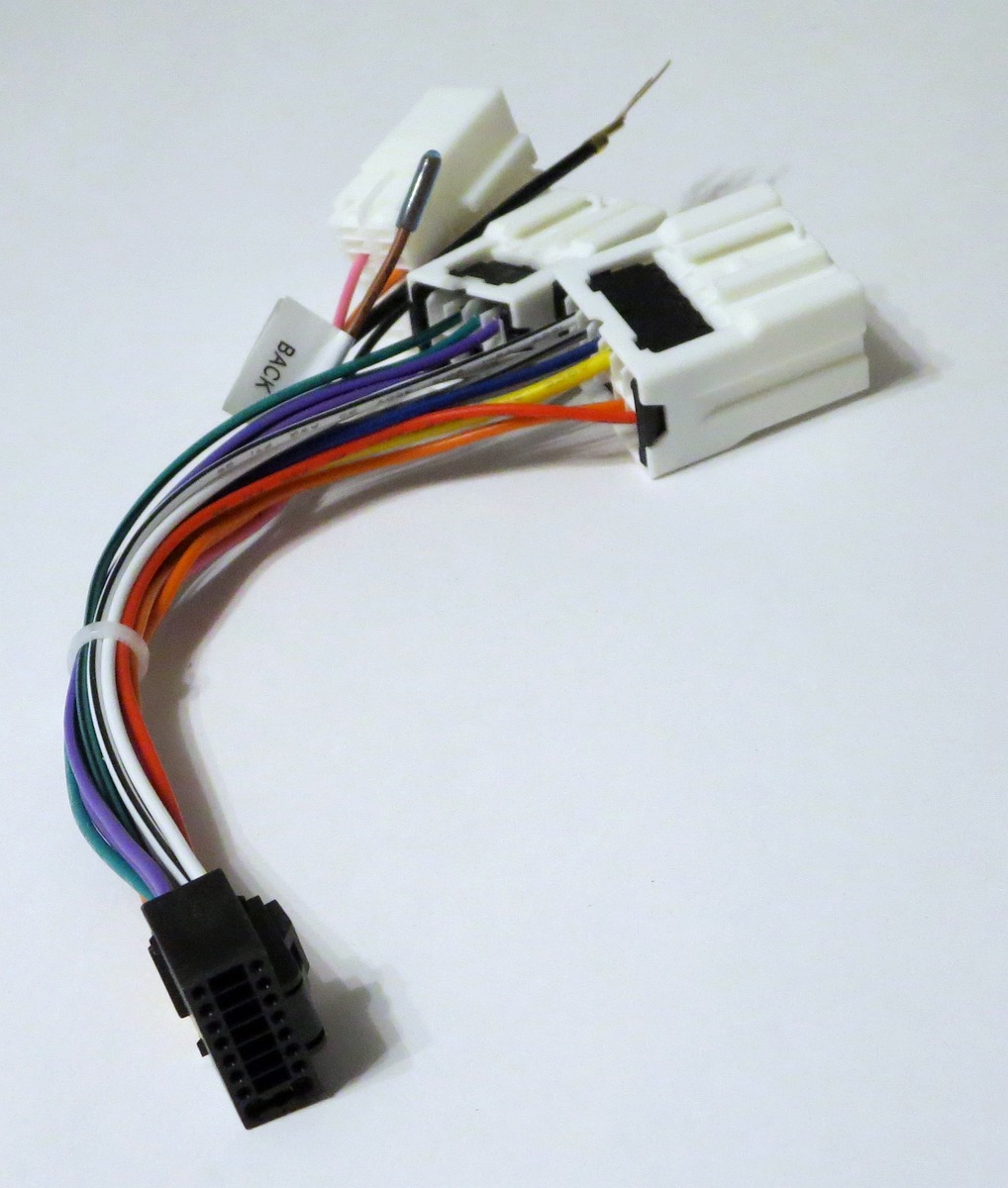

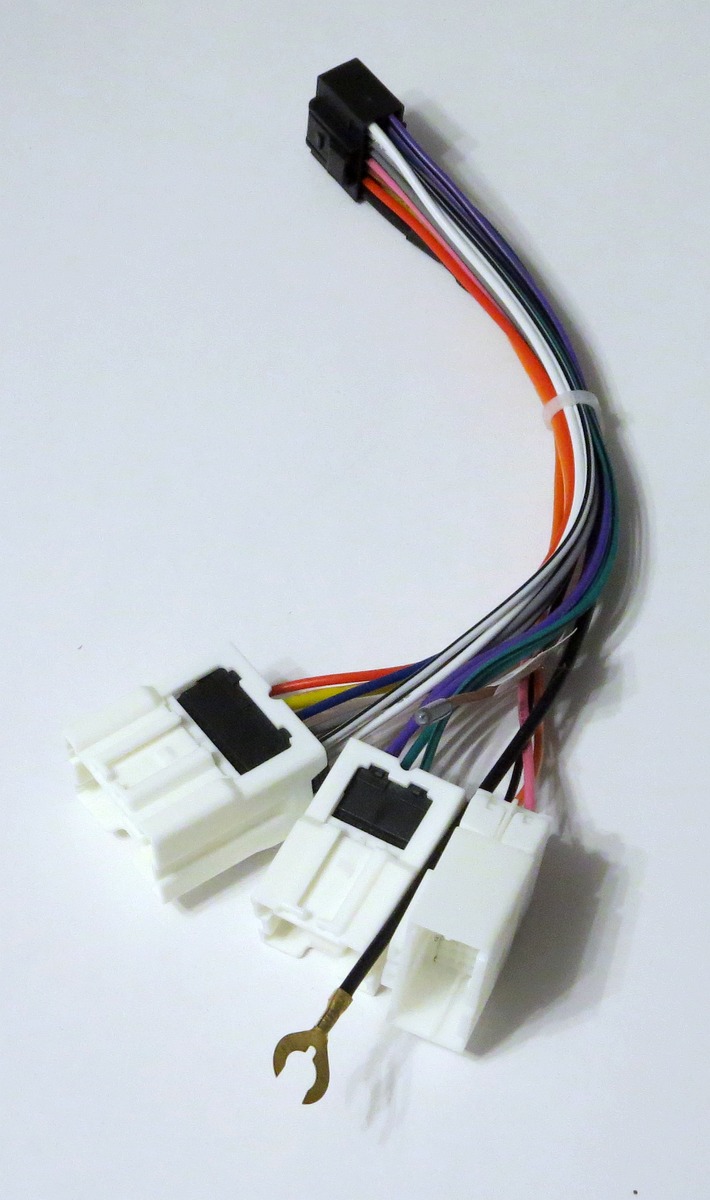

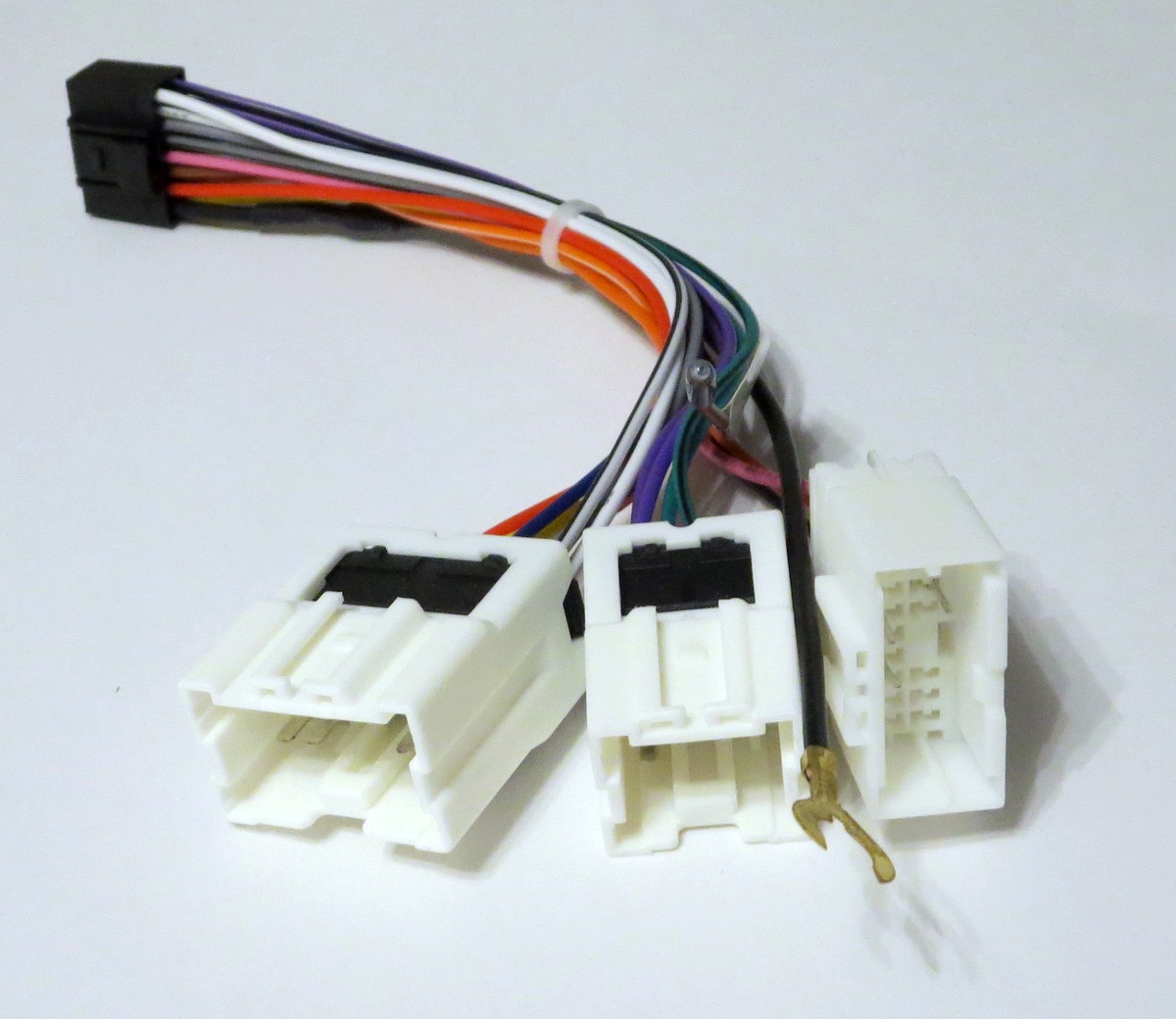

This harness is the simplest way to install an ATOTO A6PF, S8 Lite, or S8MS headunit in your Nissan or Infiniti. It is pre-wired with the ATOTO connector on 1 end and the Nissan/Infiniti 24-pin connector on the other.

The Steering wheel button signals are connected on this adapter for MOST Nissan and Infiniti vehicles. Some Nissan vehicles have the steering wheel buttons tied to a different connector because the button signals are routed through a multi-information display. In this case, the steering wheel button signals will need to be connected differently through an AXXESS AXSWC-2 module. We can help you with the wiring for this if you email us! (Usually the buttons signals are either on a 32-pin or 40-pin connector for these Nissan vehicles)

Backup Camera - IMPORTANT: This adapter does not retain the backup camera. If your vehicle has a backup camera, you will use this adapter combined with the backup camera adapter that we offer. For most vehicles, this will be plug and play. Please contact us at inquiry@autoharnesshouse.com for details!

What's included:

-ATOTO A6PF Direct wire adapter (24-pin to fit Nissan and Infiniti vehicles)
-Reverse and Amp Turn-on signals are provided from the ATOTO connector since these may need to be connected elsewhere on the vehicle.

Note: this adapter fits the 7-inch and 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF). It does NOT fit the 10.1-inch A6 PF (A6G110PF) - despite the A6 PF name that radio uses the standard ATOTO S8 & F7 connector, so it needs our other ATOTO adapter instead.

What's included:

• ATOTO A6PF Direct Wire Adapter (24-pin Nissan/Infiniti connector)
• Steering Wheel Control wires are provided to the OEM connector.
• Reverse and Amp Turn-on signals are provided from the ATOTO connector since they will need to be connected elsewhere on the vehicle.

Installation:

1) Just connect both ends (to the ATOTO headunit and to the Vehicle)
2) Connect the Ground and E-brake signal (Reverse is needed only if you will be connecting a backup camera)
3) Program the steering wheel buttons on the ATOTO on-screen menu. That menu will allow you to assign the function of each button so that the ATOTO unit knows what function to perform when you press a steering wheel button.

Purchase:

Price: $36.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Infiniti
FX35 2003-2008
FX45 2003-2008

Nissan
200SX 1995-1998
240SX 1995-1998
350Z 2003-2007
Altima 1995-2006
Armada 2004-2007
Frontier 1998-2007
Hardbody Pickup 1995-1997
Maxima 1995-2006
Murano 2003-2007
Pathfinder 1995-2007
Quest 2004-2006
Sentra 1995-2006
Titan 2004-2012
Xterra 2000-2008
Equator 2009-2011

ATOTO A6PF and S8MS Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
ATOTO A5L 7-inch model - 7-inch ONLY, NOT the 10-inch A5L (A5LG110T / A5LG110PT), which uses the standard ATOTO S8 & F7 connector instead
ATOTO A6 PF model - 7-inch and 9-inch only (7-inch A6G2A7PF sold by AutoHarnessHouse HERE!) - NOT the 10.1-inch A6G110PF, see below
ATOTO S8 Lite model
ATOTO S8 MS model (9-inch S8G2094MS sold by AutoHarnessHouse HERE!) - except the S8G1104MS / S8EG1104MSB / S81104MSFX, see below
ATOTO S8 UN (S8G2A79UN)

DOES NOT FIT ATOTO F7WE or ATOTO F7 XE or any other ATOTO F7 Variations

DOES NOT FIT ATOTO X10

The ATOTO V10 (V10G110OC) and S8 Gen4 (S84G110PB) also use a 16-pin harness, but we have not yet confirmed they use this exact connector - please email us before ordering for one of those.

DOES NOT FIT the 10.1-inch ATOTO A6 PF (A6G110PF) - despite the A6 PF name, that radio uses the standard ATOTO S8 & F7 connector instead.

DOES NOT FIT the ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). That radio uses the standard ATOTO S8 & F7 connector instead.

We carry a compatible adapter for these other ATOTO models. Please email us or check out the Similar items below.

Enon Headuint Compatibility

Eonon UA13SK Plus
Eonon UA12S-Plus

Power Acoustik Headunit Compatibility

Power Acoustik CP-71W
