Direct wire harness for Sony Headunits (fits Select Ford Lincoln Mercury Hyundai Vehicles - See compatibility information below)

Item Number: AHH-70-5520SO

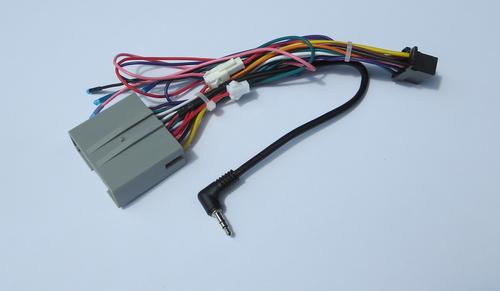

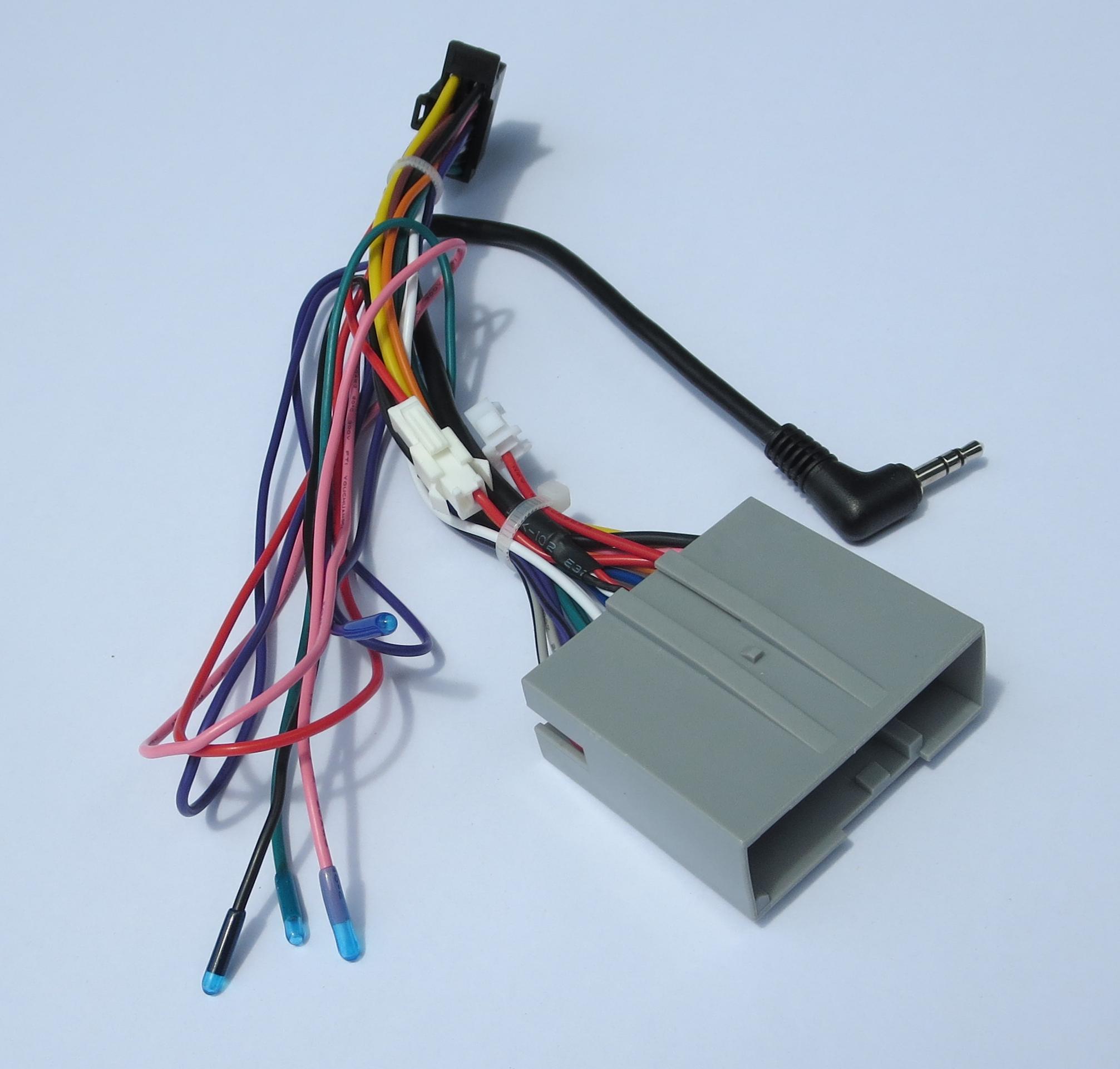

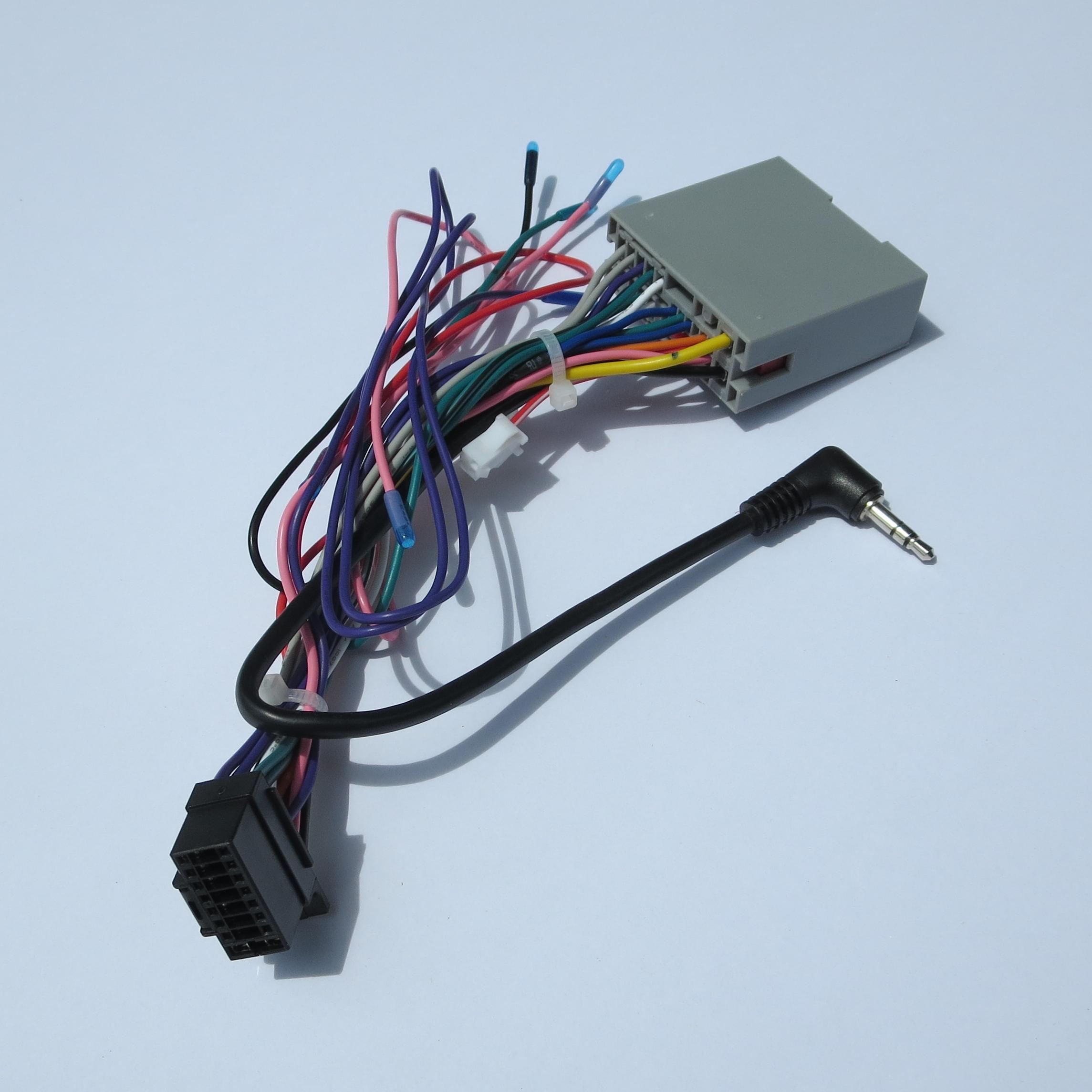

Installing a Sony head unit in your Ford, Mercury, or Hyundai is straightforward with this plug-and-play harness. It comes prewired with a Sony connector on one end and the correct OEM connector on the other, making installation quick and reliable. In most applications, steering wheel buttons can still be used when programmed through the Sony interface. This harness is not directly compatible with amplified systems like Ford's Shaker audio.

Installation:

1) Just connect both ends (to the Sony and to the Vehicle)
2) Configure the steering wheel buttons using the on-screen menu on the headunit. (to select the function that each steering wheel button will produce on the headunit)
3) Connect the Reverse Signal as needed (needed only if you will be connecting a backup camera)

Purchase:

Price: $29.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Ford
2009-2013 Econoline
2008-2011 Escape
2004-2014 Expedition
2004-2010 Explorer (Sometimes the 2004 and 2005 Explorer use this adapter: AHH-70-1771 - Please Check Which Connector youve got in your vehicle.)
2005-2012 Flex
2004-2010 F-150
2005-2010 F-250/350 SUPER DUTY
2006-2007 Five Hundred
2005-2011 Focus
2004-2007 Freestar
2005-2007 Freestyle
2006-2012 Fusion
2005-2013 Mustang

(Typically the Mustang will use the alternate power feed. This is a separate white 2-pin connector that must be connected. See the included instructions or contact support at inquiry@autoharnesshouse.com for details)

Hyundai
2006-2008 Sonata

Lincoln
2003-2005 Aviator
2006-2010 Town Car

Mazda
2008-2010 Tribute

Mercury
2003-2011 Grand Marquis
2008-2011 Mariner
2005-2007 Montego
2004-2007 Monterey
2006-2010 Mountaineer
2004-2005 Mountaineer (with factory subwoofer)
2006-2009 Milan
2008-2009 Sable

Sony Headunit Compatibility

Sony CDX-G1200U
Sony DSX-A410BT
Sony DSX-A415BT
Sony DSX-A416BT
Sony DSX-B700
Sony DSX-GS80
Sony DSX-GS900
Sony MEX-BT4100P
Sony MEX-N4200BT
Sony MEX-N4300BT
Sony MEX-N5300BT
Sony MEX-N7300BD
Sony XAV-9500ES
Sony XAV-AV5600
Sony XAV-AX1000
Sony XAV-AX3200
Sony XAV-AX3700
Sony XAV-AX4000
Sony XAV-AX5000
Sony XAV-AX5500
Sony XAV-AX7000
Sony XAV-AX8100

and MANY more...
