Direct wire harness for Pioneer Headunits (fits Select Ford Lincoln Mercury Hyundai Vehicles - See compatibility information below)

Item Number: AHH-70-5520

This harness is the simplest way to install a Pioneer headunit in your Ford. It is pre-wired with the Pioneer connector on one end and the Ford connector on the other.

What's included:

• The Vehicle Speed signal is connected (This must be cut for Pioneer units that don*t require a vehicle speed input)
• Steering Wheel Control wires are Provided. (This is unique - these signals are not provided on most aftermarket install harnesses)
• Amp Turn-on/Trigger signal is provided for use with an E-brake bypass or for using an aftermarket amplifier.
• Reverse and E-brake signals are provided from the Pioneer connector since they will need to be connected elsewhere on the vehicle.
• Installation instructions are provided with your adapter.

Installation:

1) Just connect both ends (to the Pioneer and to the Vehicle)
2) Connect the E-brake signal (Reverse is needed only if you will be connecting a backup camera)
3) If the Pioneer headunit does not have a GPS antenna, cut the PINK Vehicle Speed Signal wire, which has a tag on it. (This wire is used for a different function on non-navigation Pioneer headunits)

Purchase:

Price: $19.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Ford
2009-2013 Econoline
2008-2011 Escape
2004-2014 Expedition

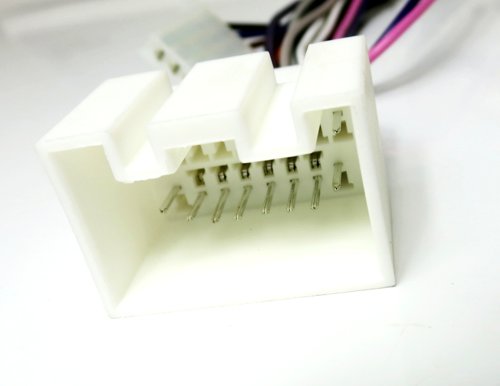

2004-2010 Explorer (Sometimes the 2004 and 2005 Explorer use this adapter: AHH-70-1771 - Please Check Which Connector youve got in your vehicle.)
2005-2012 Flex
2004-2010 F-150
2005-2010 F-250/350 SUPER DUTY
2006-2007 Five Hundred
2005-2011 Focus
2004-2007 Freestar
2005-2007 Freestyle
2006-2012 Fusion
2005-2013 Mustang

(Typically the Mustang will use the alternate power feed. This is a separate white 2-pin connector that must be connected. See the included instructions or contact support at inquiry@autoharnesshouse.com for details)

Hyundai
2006-2008 Sonata

Lincoln
2003-2005 Aviator
2006-2010 Town Car

Mazda
2008-2010 Tribute

Mercury
2003-2011 Grand Marquis
2008-2011 Mariner
2005-2007 Montego
2004-2007 Monterey
2006-2010 Mountaineer
2004-2005 Mountaineer (with factory subwoofer)
2006-2009 Milan
2008-2009 Sable

Pioneer Headunit Compatibility

This harness will fit any 2014 or newer Pioneer headunit with a video screen.
(If your unit does not have a video screen, slight modification may be necessary. Click here for more details.)
Pioneer AVH-110BT
Pioneer AVH-120BT
Pioneer AVH-1300NEX
Pioneer AVH-1330NEX
Pioneer AVH-1500NEX
Pioneer AVH-1550NEX
Pioneer AVH-190DVD
Pioneer AVH-200EX
Pioneer AVH-201EX
Pioneer AVH-210EX
Pioneer AVH-211EX
Pioneer AVH-220EX
Pioneer AVH-270BT
Pioneer AVH-280BT
Pioneer AVH-290BT
Pioneer AVH-291BT
Pioneer AVH-2300NEX
Pioneer AVH-2330NEX
Pioneer AVH-2400NEX
Pioneer AVH-2440NEX
Pioneer AVH-2500NEX
Pioneer AVH-2550NEX
Pioneer AVH-310EX
Pioneer AVH-3500NEX
Pioneer AVH-4100NEX
Pioneer AVH-4200NEX
Pioneer AVH-500EX
Pioneer AVH-501EX
Pioneer AVH-521EX
Pioneer AVH-600EX
Pioneer AVH-601EX

Pioneer AVH-W4400NEX
Pioneer AVH-W4500NEX

Pioneer AVH-X2800bs
Pioneer AVH-X390bs
Pioneer AVH-X391BHS
Pioneer AVH-X4800bs
Pioneer AVH-X490bs
Pioneer AVH-X491BHS
Pioneer AVH-X5800BHS
Pioneer AVH-X7800BT

Pioneer AVH-ZL5150BT

Pioneer AVIC-5000NEX
Pioneer AVIC-5100NEX
Pioneer AVIC-5200NEX
Pioneer AVIC-5201NEX
Pioneer AVIC-6200NEX
Pioneer AVIC-6201NEX
Pioneer AVIC-7200NEX
Pioneer AVIC-7201NEX
Pioneer AVIC-8200NEX
Pioneer AVIC-8201NEX
Pioneer AVIC-W6400NEX
Pioneer AVIC-W6500NEX
Pioneer AVIC-W8400NEX
Pioneer AVIC-W8500NEX

Pioneer DEH-80PRS
Pioneer DMH-100BT
Pioneer DMH-130BT
Pioneer DMH-160BT
Pioneer DMH-1500NEX
Pioneer DMH-1700NEX
Pioneer DMH-1770NEX
Pioneer DMH-240EX
Pioneer DMH-241EX
Pioneer DMH-2000NEX
Pioneer DMH-2600NEX
Pioneer DMH-2660NEX
Pioneer DMH-341EX

Pioneer DMH-C5500NEX
Pioneer DMH-C2550NEX
Pioneer DMH-C2500NEX
Pioneer DMH-W2700NEX
Pioneer DMH-W2770NEX
Pioneer DMH-W3000NEX
Pioneer DMH-W3050NEX
Pioneer DMH-W4600NEX
Pioneer DMH-W4660NEX
Pioneer DMH-WC6600NEX
Pioneer DMH-WC5700NEX
Pioneer DMH-WT3800NEX
Pioneer DMH-WT76NEX
Pioneer DMH-WT7600NEX
Pioneer DMH-WT8600NEX

Pioneer MVH-AV251BT
Pioneer MVH-AV290BT
Pioneer MVH-1400NEX
Pioneer MVH-210EX
Pioneer MVH-211EX
Pioneer MVH-2400NEX
Pioneer MVH-300EX
Pioneer MVH-S310BT

Pioneer SPH-DA02 AppRadio
Pioneer SPH-DA01 AppRadio
Pioneer SPH-DA120 AppRadio 4
Pioneer SPH-DA210 AppRadio 3
Pioneer SPH-DA100 AppRadio 2
Pioneer SPH-10BT

and MANY more...

Are you installing a Single DIN Pioneer headunit or a headunit that does not have an LCD display screen? This adapter is compatible with these headunits but a modification to the harness is necessary. Click Here for compatibility and instructions.
