Direct wire harness for Pioneer Headunits (fits 2006-2012 Honda/Acura - See compatibility information below)

Item Number: AHH-70-1722

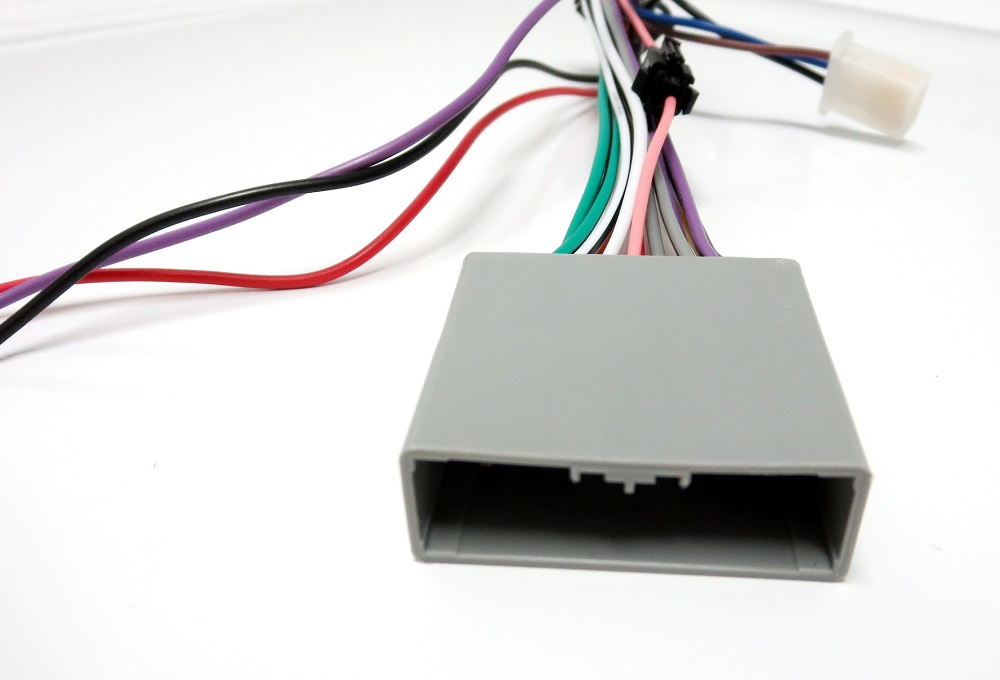

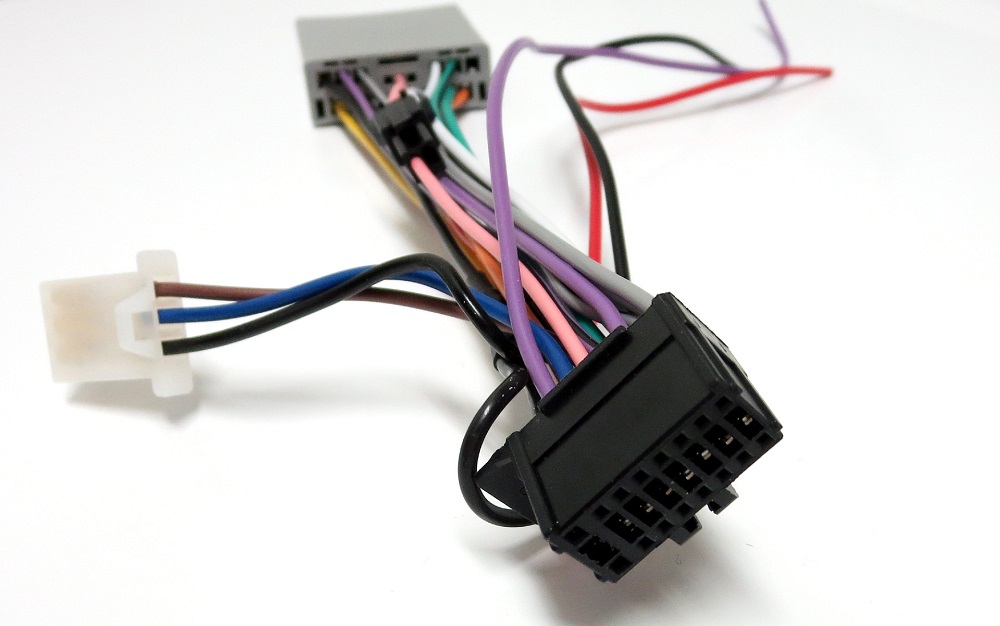

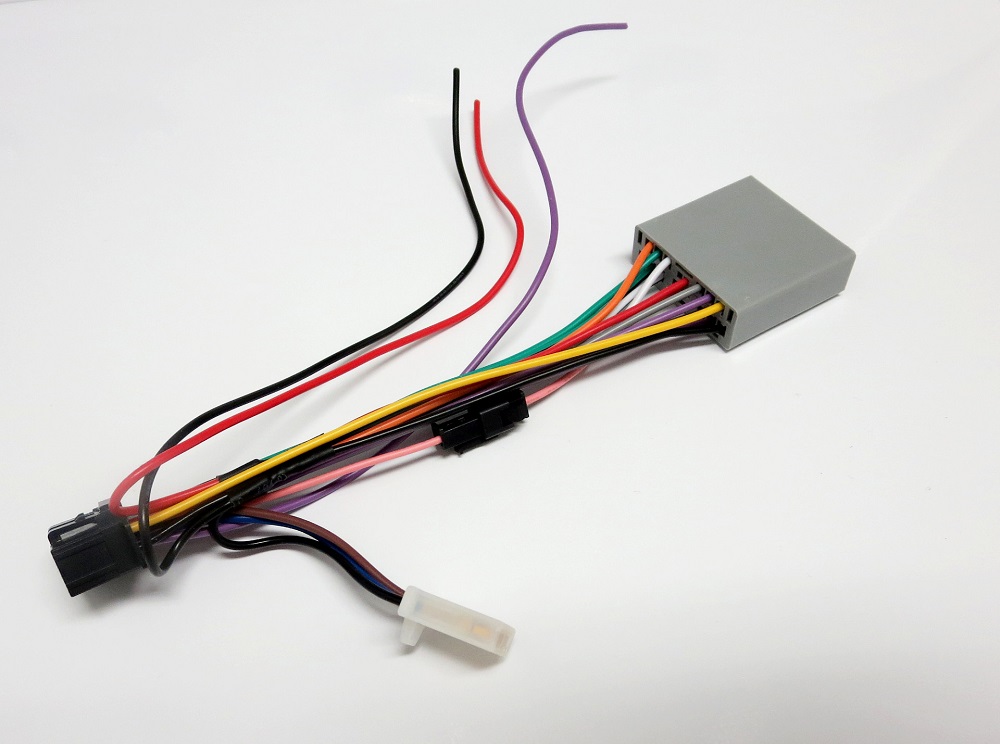

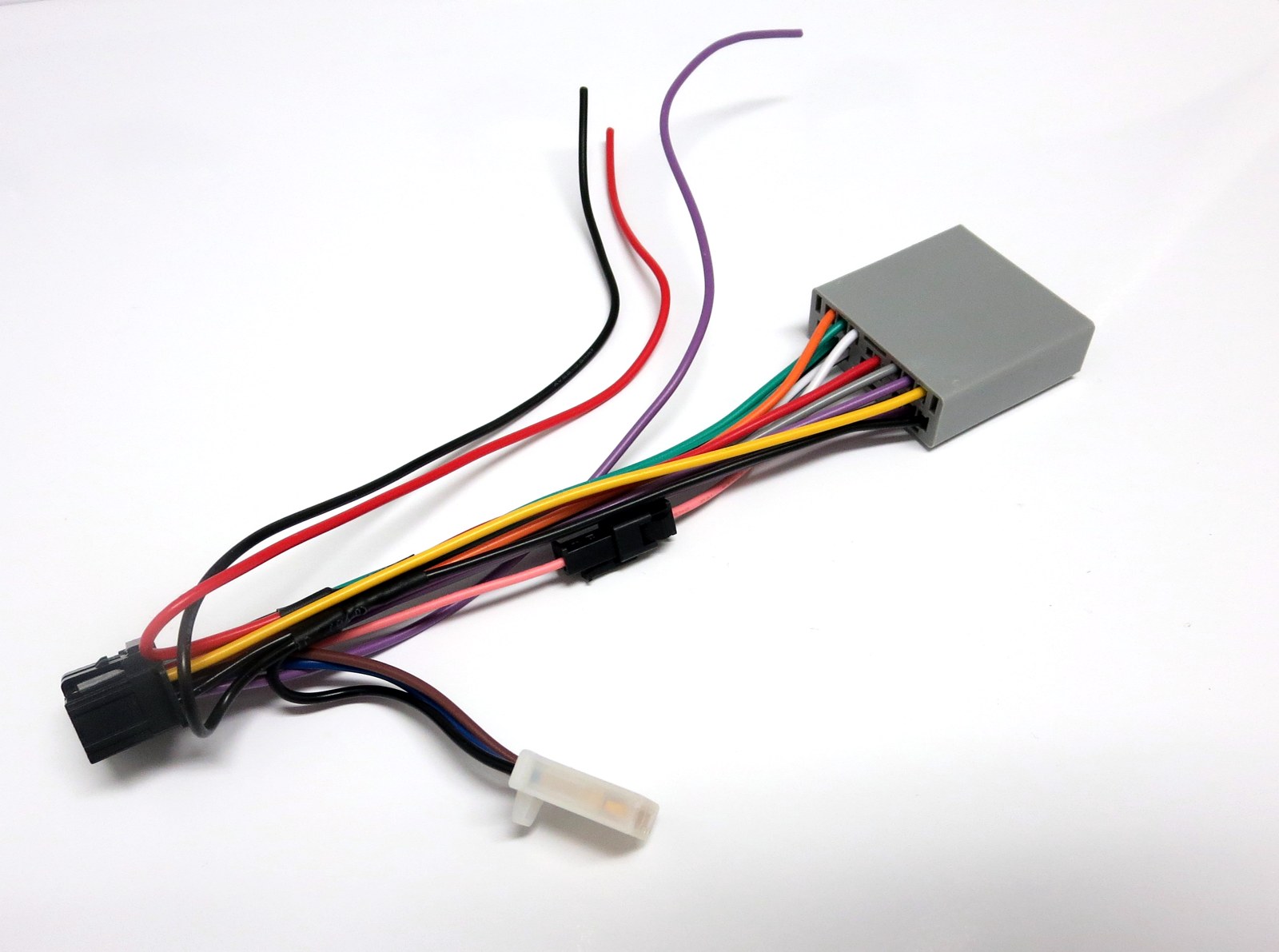

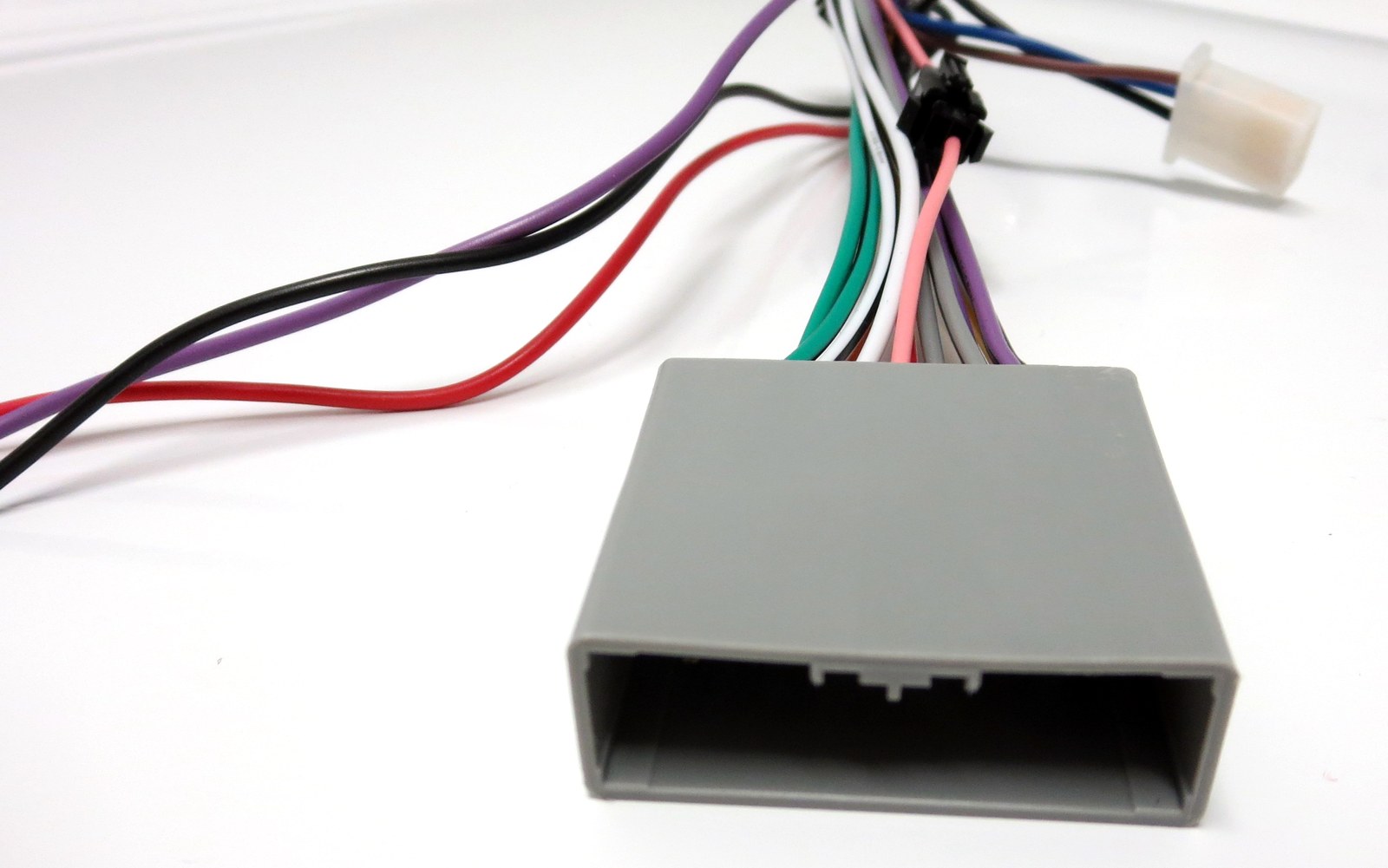

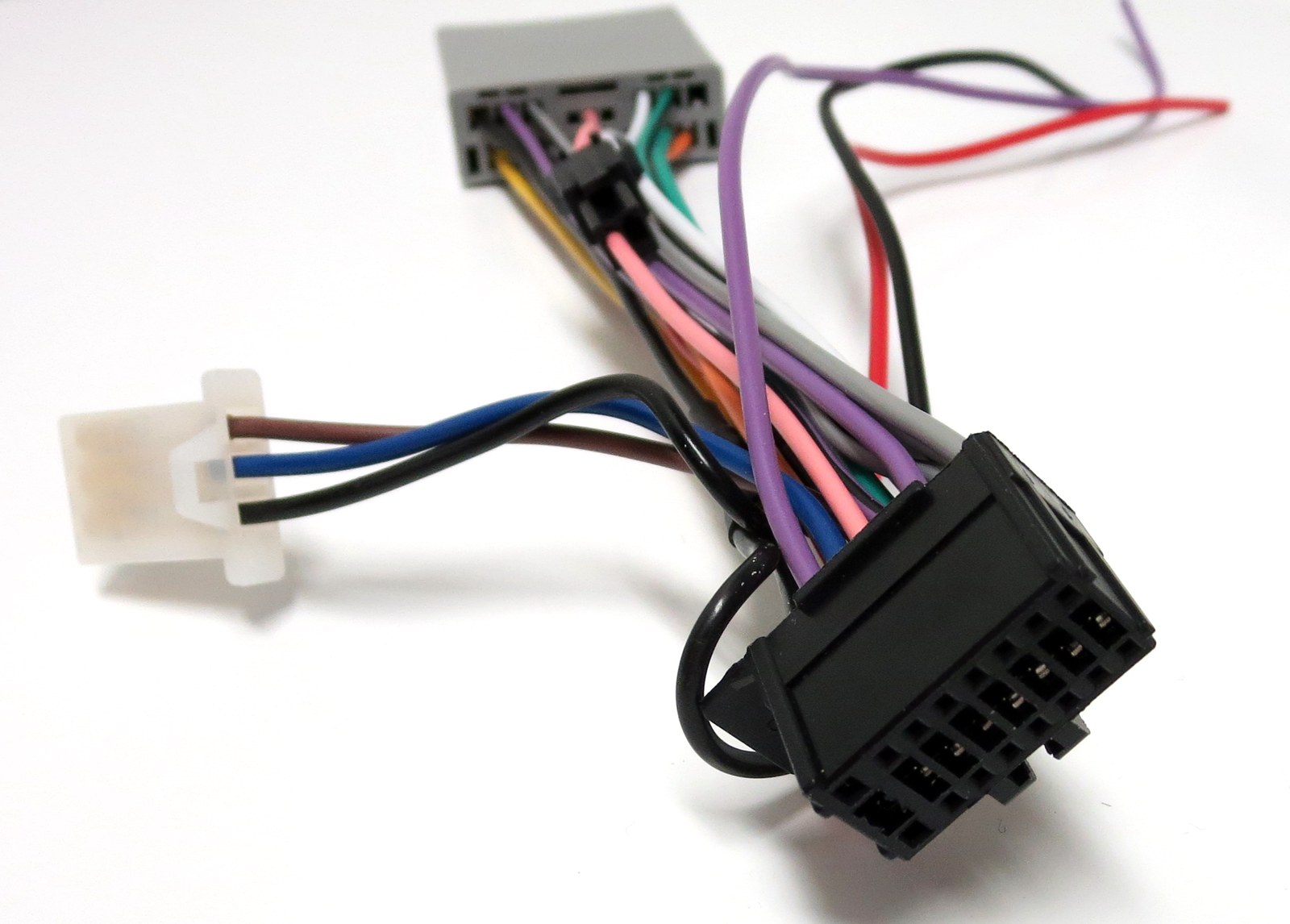

This harness is the simplest way to install a Pioneer headunit in your Honda or Acura. It is pre-wired with the Pioneer connector on 1 end and the Honda connector on the other. This adapter is does not have the steering wheel button wires. Those wires will be on a separate connector. We sell the adapter for the steering wheel buttons HERE (or at the bottom of this page). Pioneer headunits also require the AXXESS ASWC-1 to connect these buttons to the Pioneer headunit. We can help you with the wiring for this if you order these parts in the same order! Just email us: inquiry@autoharnesshouse.com

If you would like to install the Parking Brake Bypass with this adapter, we have a new version of this adapter that will have the connector for the AutoHarnessHouse Parking Brake Bypass attached. This is an excellent option if you want to bypass the video-in-motion functions. The AutoHarnessHouse Parking Brake Bypass module sold here is compatible with this new style of the AHH-70-1722 harness listed here!

What's included:

• Reverse, Vehicle Speed, and E-brake signals are provided from the Pioneer connector since this will need to be connected elsewhere on the vehicle.
• All Spearker signals are already wired. Just plug in both ends!

Installation:

1) Just connect both ends (to the Pioneer and to the Vehicle)
2) Connect the Vehicle Speed and E-brake signals (Reverse is needed only if you will be connecting a backup camera)

Purchase:

Price: $19.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Acura
2008-2012 RDX Non-Navigation
2013 RDX

Honda
2006-2011 CIVIC
2007-2011 CRV
2007-2008 FIT
2008-2010 ODYSSEY Non-Navigation

Pioneer Headunit Compatibility

This harness will fit any 2014 or newer Pioneer headunit with a video screen.
(If your unit does not have a video screen, slight modification may be necessary. Click here for more details.)
Pioneer AVH-110BT
Pioneer AVH-120BT
Pioneer AVH-1300NEX
Pioneer AVH-1330NEX
Pioneer AVH-1500NEX
Pioneer AVH-1550NEX
Pioneer AVH-190DVD
Pioneer AVH-200EX
Pioneer AVH-201EX
Pioneer AVH-210EX
Pioneer AVH-211EX
Pioneer AVH-220EX
Pioneer AVH-270BT
Pioneer AVH-280BT
Pioneer AVH-290BT
Pioneer AVH-291BT
Pioneer AVH-2300NEX
Pioneer AVH-2330NEX
Pioneer AVH-2400NEX
Pioneer AVH-2440NEX
Pioneer AVH-2500NEX
Pioneer AVH-2550NEX
Pioneer AVH-310EX
Pioneer AVH-3500NEX
Pioneer AVH-4100NEX
Pioneer AVH-4200NEX
Pioneer AVH-500EX
Pioneer AVH-501EX
Pioneer AVH-521EX
Pioneer AVH-600EX
Pioneer AVH-601EX

Pioneer AVH-W4400NEX
Pioneer AVH-W4500NEX

Pioneer AVH-X2800bs
Pioneer AVH-X390bs
Pioneer AVH-X391BHS
Pioneer AVH-X4800bs
Pioneer AVH-X490bs
Pioneer AVH-X491BHS
Pioneer AVH-X5800BHS
Pioneer AVH-X7800BT

Pioneer AVH-ZL5150BT

Pioneer AVIC-5000NEX
Pioneer AVIC-5100NEX
Pioneer AVIC-5200NEX
Pioneer AVIC-5201NEX
Pioneer AVIC-6200NEX
Pioneer AVIC-6201NEX
Pioneer AVIC-7200NEX
Pioneer AVIC-7201NEX
Pioneer AVIC-8200NEX
Pioneer AVIC-8201NEX
Pioneer AVIC-W6400NEX
Pioneer AVIC-W6500NEX
Pioneer AVIC-W8400NEX
Pioneer AVIC-W8500NEX

Pioneer DEH-80PRS
Pioneer DMH-100BT
Pioneer DMH-130BT
Pioneer DMH-160BT
Pioneer DMH-1500NEX
Pioneer DMH-1700NEX
Pioneer DMH-1770NEX
Pioneer DMH-240EX
Pioneer DMH-241EX
Pioneer DMH-2000NEX
Pioneer DMH-2600NEX
Pioneer DMH-2660NEX
Pioneer DMH-341EX

Pioneer DMH-C5500NEX
Pioneer DMH-C2550NEX
Pioneer DMH-C2500NEX
Pioneer DMH-W2700NEX
Pioneer DMH-W2770NEX
Pioneer DMH-W3000NEX
Pioneer DMH-W3050NEX
Pioneer DMH-W4600NEX
Pioneer DMH-W4660NEX
Pioneer DMH-WC6600NEX
Pioneer DMH-WC5700NEX
Pioneer DMH-WT76NEX
Pioneer DMH-WT7600NEX
Pioneer DMH-WT8600NEX

Pioneer MVH-AV251BT
Pioneer MVH-AV290BT
Pioneer MVH-1400NEX
Pioneer MVH-210EX
Pioneer MVH-211EX
Pioneer MVH-2400NEX
Pioneer MVH-300EX
Pioneer MVH-S310BT

Pioneer SPH-DA02 AppRadio
Pioneer SPH-DA01 AppRadio
Pioneer SPH-DA120 AppRadio 4
Pioneer SPH-DA210 AppRadio 3
Pioneer SPH-DA100 AppRadio 2
Pioneer SPH-10BT

and MANY more...

Are you installing a Single DIN Pioneer headunit or a headunit that does not have an LCD display screen? This adapter is compatible with these headunits but a modification to the harness is necessary. Click Here for compatibility and instructions.
